1980 10" Swing 24" Centers
Location:
Harrison, NJ
Model:
1024U
Weight:
5,100 LBS

Specifications

Condition:
used
Year:
1980
Serial number:
521-1024-281
Stock number:
149158
Fast:
1.5"
Slow:
0.1"
Fast 2:
0.3"
Swing over table:
10"
Approximate weight:
5,100 LBS
Grinding wheel size:
12" X 1" X 5"
Scales-taper per ft:
3-1/2"
Wheel spindle swivels:
90 DEGREES EITHER WAY
Tailstock spindle taper:
#7 JARNO
Crossfeed handwheel grad:
0.00002"
Swivel at the wheelslide:
90 DEGREES EITHER WAY
Tailstock spindle travel:
5/8"
Max. travel of wheelslide:
5"
Headstock spindle nose taper:
A2-5"
Minimum grinding wheel width:
3/8"
Wheelhead spindle speeds (3):
2100, 2400& 2800 RPM
Infinitely variable table speed:
3" TO 150" IPM
Distance between centers, maximum:
26-3/4"
Distance between centers, nominal:
24"
Infinitely variable spindle speeds:
60 TO 600 RPM

Description

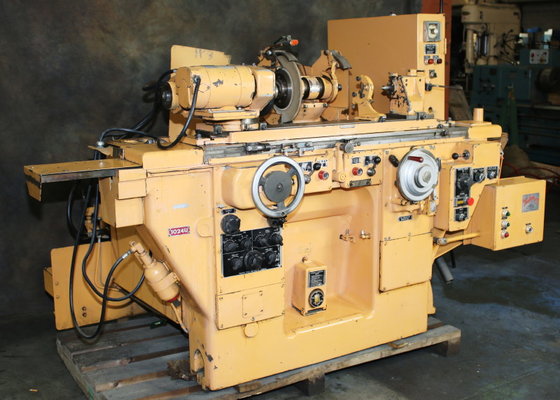

10" X 24" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER
MODEL: 1024U S/N: 521-1024-281 NEW: 1980
** FULL AUTO CYCLE (PICK, PLUNGE, RAPID, SPARKOUT TIMER)**
SWING OVER TABLE .................................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL .................... 24"
DISTANCE BETWEEN CENTERS, MAXIMUM ................ 26-3/4"
WHEELHEAD SPINDLE SPEEDS (3) ...... 2100, 2400& 2800 RPM
GRINDING WHEEL SIZE ........................ 12" X 1" X 5"
MINIMUM GRINDING WHEEL WIDTH ........................ 3/8"
SWIVEL AT THE WHEELSLIDE ........... 90 DEGREES EITHER WAY
WHEEL SPINDLE SWIVELS .............. 90 DEGREES EITHER WAY
INFINITELY VARIABLE SPINDLE SPEEDS ........ 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ....................... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ......... 90 DEGREES
INFINITELY VARIABLE TABLE SPEED .......... 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
SLOW ................................................ 0.1"
FAST ................................................ 1.5"
DWELL AT EACH OR ALTERNATE TABLE REV. ..... 0 - 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR ANGULAR SETTING ...... 8-1/4 DEG.
SCALES-TAPER PER FT. .............................. 3-1/2"
MAX. TRAVEL OF WHEELSLIDE ............................ 5"
CROSSFEED HANDWHEEL GRAD. ....................... 0.00002"
AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER
OR WORK AT EACH OR ALTERNATE REVERSALS .. 0.0001" - .003"
HAND FEED PER REV. OF HANDWHEEL:
SLOW ................................................ 0.1"
FAST ................................................ 0.3"
TAILSTOCK SPINDLE TAPER .........................#7 JARNO
TAILSTOCK SPINDLE TRAVEL ............................ 5/8"
APPROXIMATE WEIGHT ............................ 5,100 LBS
MACHINE FEATURES:
DUAL RIGHT OR LEFT END WHEEL MOUNTING
SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
COMBINATION STRAIGHT AND TAPER GRINDING,
EXTERNAL OR INTERNAL.
INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
AUTO PLUNGE INFEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
ADJUSTABLE TABLE DWELL
SELF-CONTAINED HYDRAULIC SYSTEM
OIL CHILLER UNIT (FAN COOLED)
EQUIPPED WITH:
B & S "HYDROSTATIC" WORKHEAD w/DUAL DEAD/LIVE
HEADSTOCK SPINDLE
COLLET CHUCK
3-POINT STEADY REST
2-POINT STEADY REST
"TRABON" AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM
MOTORS ARE 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
** SUPERIOR CONDITION FROM A DEFENSE CONTRACTOR **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
