Top Seller
1982 5' Arm Lth 11"
Location:
Harrison, NJ
Price:
$14,500 USD
Manufacturer:
Carlton
Model:
Carlton 1A
Weight:
9,000 LBS

Specifications

Condition:
used
Year:
1982
Serial number:
1A4393T
Stock number:
149084
Cast iron:
2-1/4"
Arm length:
5'
Mild steel:
2"
Condition 2:
** SUPERB - LOOKS AND RUNS GREAT!**
Spindle to base:
14-3/4" TO 4'7"
Spindle diameter:
2-1/2"
Taper in spindle:
#4 MT
Feeds-(6 changes):
004,.006,.008,
Approximate weight:
9,000 LBS
Traverse of head on arm:
4'-3"
Working surface of base:
3' X 5'6"
Traverse of arm on column:
2'4-1/2"
Spindle speeds-(12 speeds):
80 TO 2000 RPM
Overall dimensions head down:
8' TALL
Subcategory:
Radial arm drills

Description

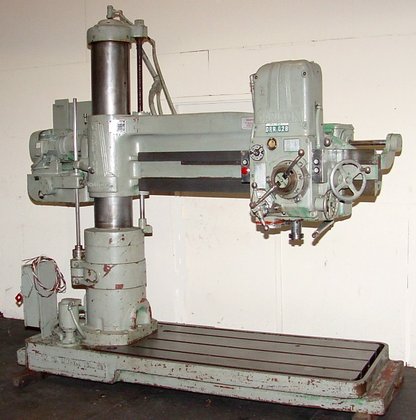

5' X 11" CARLTON RADIAL DRILL
MODEL: 1A, S/N: 1A-4393T, NEW: 1982
SPECIFICATIONS:
ARM LENGTH .......................... 5'
FACE OF COLUMN TO CENTER OF SPINDLE . 9" TO 5'
SPINDLE TO BASE ..................... 14-3/4" TO 4'7"
WORKING SURFACE OF BASE ............. 3' X 5'6"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 12"
SPINDLE DIAMETER .................... 2-1/2"
TAPER IN SPINDLE .................... #4 MT
FEEDS-(6 CHANGES) ................... .004,.006,.008,
.012, .020 & .025 IPR
SPINDLE SPEEDS-(12 SPEEDS) .......... 80 TO 2000 RPM
DRILLING CAPACITIES:
MILD STEEL ....................... 2"
CAST IRON ........................ 2-1/4"
TRAVERSE OF ARM ON COLUMN ........... 2'4-1/2"
TRAVERSE OF HEAD ON ARM ............. 4'-3"
APPROXIMATE WEIGHT .................. 9,000 LBS
OVERALL DIMENSIONS HEAD DOWN ........ 8' TALL
43" WIDE
105" LONG
EQUIPPED WITH:
* POWER ELEVATION OF ARM ON COLUMN
* T-SLOTTED BOX TABLE
* T-SLOTTED BASE
* COOLANT SYSTEM
* 10 HORSE POWER SPINDLE MOTOR
* MACHINE HAS 3 PHASE 60 CYCLE 220/440 VOLT ELECTRICS
CONDITION:** SUPERB - LOOKS AND RUNS GREAT!**
INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE
