Top Seller
24" Swing 120" Centers Pasquino
Location:
Harrison, NJ
Price:
$12,500 USD
Manufacturer:
Pasquino
Distance between Centers:
120"
Spindle Nose:
L NOSE

Specifications

Condition:
used
Serial number:
20738
Stock number:
145475
New:
1960'S
Age info:
1960's
Bed width:
18"
Feed range:
05 - .937
Quill travel:
7-7/78"
Spindle nose:
L NOSE
Approx weight:
10,500 LBS
Swing over bed:
24-1/4"
Swing over gap:
34"
Tailstock taper:
#5MT
Threading - inch:
4 - 60 TPI
Approx dimensions:
190"L x 4'5"W x 55"H
Hole thru spindle:
2-1/2"
Threading - metric:
5 - 7.5 MM
Spindle speeds (16):
22 - 1200 RPM
Swing over cross slide:
14-1/2"
Distance between centers:
120"
Subcategory:
Engine lathes
Subcategory 2:
Toolroom machines

Description

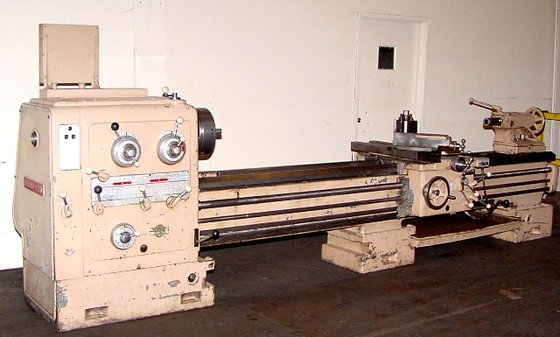

24"/34" x 120" PASQUINO-MILANO GAP BED ENGINE LATHE
NEW: 1960'S
SPECIFICATIONS:
SWING OVER BED ........................... 24-1/4"
SWING OVER CROSS SLIDE ................... 14-1/2"
SWING OVER GAP ........................... 34"
DISTANCE BETWEEN CENTERS ................. 120"
BED WIDTH ................................ 18"
SPINDLE SPEEDS (16) ...................... 22 - 1200 RPM
HOLE THRU SPINDLE ........................ 2-1/2"
SPINDLE NOSE ............................. L NOSE
FEED RANGE ............................... .05 - .937
THREADING - INCH ......................... 4 - 60 TPI
THREADING - METRIC ....................... .5 - 7.5 MM
TAILSTOCK TAPER .......................... #5MT
QUILL TRAVEL ............................. 7-7/78"
APPROX WEIGHT ............................ 10,500 LBS
APPROX DIMENSIONS ........................ 190"L x 4'5"W x 55"H
EQUIPPED WITH:
3-JAW CHUCK
QUICK CHANGE TOOLPOST
REMOVEABLE GAP BLOCK
HARDENED & GROUND BEDWAYS
COOLANT SYSTEM
POWER RAPID TRAVERSE
18 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
