Top Seller
9" Swing Feeler FTS-27 SERIES
Location:
Harrison, NJ
Price:
$3,500 USD
Manufacturer:
Feeler lathes
Model:
FTS-27 SERIES II
Spindle Nose:
HARDINGE TAPER

Specifications

Condition:
used
Serial number:
890855
Stock number:
145572
Age info:
1980'S
Jaw chucks:
5"
Condition 2:
**** EXCELLENT ****
Step chucks:
1-1/16" TO 6"
Spindle nose:
HARDINGE TAPER
Length of bed:
36"
Approx. weight:
1,000 LBS.
Swing over bed:
9"
Round 5c collets:
1-1/16"
Square 5c collets:
3/4"
Hexagon 5c collets:
7/8"
Dia. of turret holes:
5/8"
Approximate dimensions:
67"L x 29"W x 56"H
Travel of turret slide:
4"
Variable spindle speed range:
230 TO 3500 RPM
Travel of double tool cross slide:
3-3/4"
Subcategory:
Toolroom machines

Description

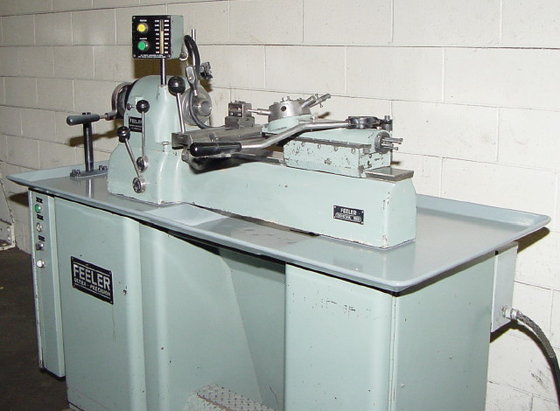

FEELER SECOND OPERATION LATHE
MODEL: FTS-27 SERIES II S/N:690855 MFG: 1980'S
SPECIFICATIONS:
SPINDLE CAPACITY WITH:
ROUND 5C COLLETS ........................ 1-1/16"
HEXAGON 5C COLLETS ...................... 7/8"
SQUARE 5C COLLETS ....................... 3/4"
STEP CHUCKS ............................. 1-1/16" TO 6"
JAW CHUCKS .............................. 5"
SPINDLE NOSE ............................ HARDINGE TAPER
LENGTH OF BED ........................... 36"
SWING OVER BED .......................... 9"
TRAVEL OF DOUBLE TOOL CROSS SLIDE ....... 3-3/4"
TRAVEL OF TURRET SLIDE .................. 4"
DIA. OF TURRET HOLES .................... 5/8"
VARIABLE SPINDLE SPEED RANGE ............ 230 TO 3500 RPM
APPROX. WEIGHT .......................... 1,000 LBS.
APPROXIMATE DIMENSIONS .................. 67"L x 29"W x 56"H
EQUIPPED WITH:
-HEXAGON BED TURRET PRE-LOADED BALL BEARING HEAD MOUNTING
-DOUBLE TOOL CROSS SLIDE
-FRONT & REAR TOOLBLOCKS WITH TOOLHOLDERS
-SELF CONTAINED COOLANT SYSTEM
-PUSH BUTTON CONTROL FOR VARIABLE SPEED
-BALL BEARING LEVER-TYPE 5C COLLET CLOSER
-TWO SPEED MAIN MOTOR AND ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE!
CONDITION: **** EXCELLENT ****
