1983 10" Width 30" Length
Location:
Harrison, NJ
Model:
1030 MICROMASTER
Weight:
6,000 LBS

Specifications

Condition:
used
Year:
1983
Serial number:
523-1030-2325
Stock number:
146768
New:
1983
Wheel sizes:
14" X 1- 1/2" X 5"
Worktable size:
10" X 30"
Power wheel truing:
10" IPM
Cross handwheel, grad:
0.0002"
Approx. machine weight:
6,000 LBS
Grinds work to height of:
18" (W/14" WHEEL)
Longitudinal table speed:
10 - 125 FPM
Vertical handwheel, grad:
0.0002"
Direct drive spindle motor:
5 HP - 1800 RPM
Rapid traverse positioning:
150 IPM
Rapid vertical power positioning:
40 IPM
Auto crossfeed per table reversal:
0.010 - .500"

Description

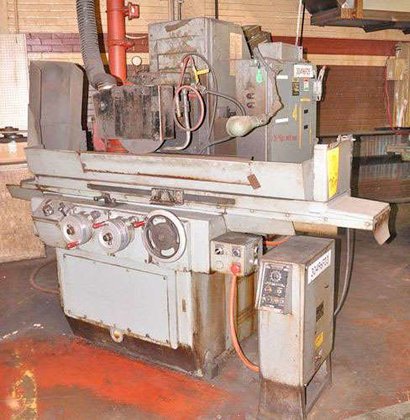

10" X 30" BROWN & SHARPE "SUPER-PRECISION"
(MADE IN USA) HYDRAULIC SURFACE GRINDER
MODEL: #1030 MICROMASTER
S/N: 523-1030-2325
NEW: 1983
WORKTABLE SIZE.............................. 10" X 30"
GRINDS WORK TO HEIGHT OF............ 18" (W/14" WHEEL)
WHEEL SIZES........................ 14" X 1- 1/2" X 5"
DIRECT DRIVE SPINDLE MOTOR............ 5 HP - 1800 RPM
LONGITUDINAL TABLE SPEED ................ 10 - 125 FPM
AUTO CROSSFEED PER TABLE REVERSAL ...... 0.010 - .500"
POWER WHEEL TRUING ........................... 10" IPM
CROSS HANDWHEEL, GRAD. ....................... 0.0002"
RAPID TRAVERSE POSITIONING.................... 150 IPM
RAPID VERTICAL POWER POSITIONING............... 40 IPM
VERTICAL HANDWHEEL, GRAD. .................... 0.0002"
FINE FEED KNOB (GRAD.) FOR VERTICAL FEED ..... 0.0001"
APPROX. MACHINE WEIGHT ..................... 6,000 LBS
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)
14" GRINDING WHEEL
10" x 30 FINE-DIVISION ELECTRO-MAGNETIC CHUCK
"ELECRO-MATIC" 300 WATT NEUTROFIER CONTROL
W/VARIABLE HOLD CONTROL
FINE FEED KNOBS FOR BOTH CROSS & VERTICAL HANDWHEELS
WITH .0001" GRAD.
HANDWHEELS ARE DUAL INCH & METRIC
OVER-THE-WHEEL DRESSER
COOLANT SYSTEM
AUTO LUBRICATION
5 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
DIRECT DRIVE SPINDLE
OIL COOLER UNIT W/FAN
* EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) *
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
