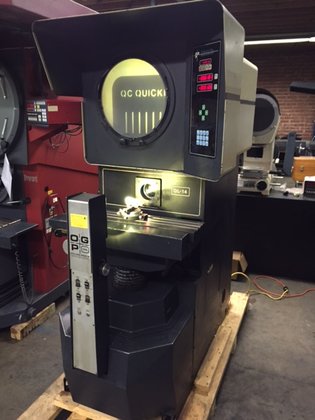

1988 14" Screen OGP QL-14C
Location:
Charlotte, NC, USA
Price:
No price
Model:
QL-14C

Specifications

Condition:
used
Year:
1988
Serial number:
QL-142084
Stock number:
147036
Weight:
1,525 LBS. (APPROX.)
Floor space:
36" L-R X 67" F-B X 74" HIGH
Helix rotation:
........................................... + / - 15 DEGREES
Screen diameter:
…..........................................14"
Throat clearance:
......................................... 18 3/8"
Working distance:
......................................... 8-3/8"
- vertical table travel:
............... 6"
Size of measuring table:
.................................. 6" X 27"
Cross travel for focusing:
................................ 2"
Angular measuring capacity:
............................... 360 DEGREE CHART ROTATION
Distance collimator to focal plane:
....................... 10"
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

OPTICAL GAGING PRODUCTS (OGP) "MADE IN USA"
OPTICAL COMPARATOR & MEASURING MACHINE
MODEL: QL-14C S/N: QL142084 NEW: 1988
SPECIFICATIONS:
SCREEN DIAMETER:…..........................................14"
SIZE OF MEASURING TABLE:.................................. 6" X 27"
MEASURING CAPACITY - LONGITUDINAL TABLE TRAVEL:........... 12"
- VERTICAL TABLE TRAVEL:............... 6"
CROSS TRAVEL FOR FOCUSING:................................ 2"
ANGULAR MEASURING CAPACITY:............................... 360 DEGREE CHART ROTATION
HELIX ROTATION:........................................... + / - 15 DEGREES
WORKING DISTANCE:......................................... 8-3/8"
DISTANCE COLLIMATOR TO FOCAL PLANE:....................... 10"
THROAT CLEARANCE:......................................... 18 3/8"
FLOOR SPACE .............................................. 36" L-R X 67" F-B X 74" HIGH
WEIGHT ................................................... 1,525 LBS. (APPROX.)
EQUIPPED WITH:
TUNGSTEN HOLOGEN PROJECTION
SURFACE ILLUMINATION
SINGLE LENS MOUNT
10X LENS
POWER LONGITUDINAL TABLE TRAVEL
POWER ELEVATION
DIMETRIC PLUS COMPUTATIONAL DIGITAL READOUT SYSTEM
SET OF TABLE CENTERS
ELECTRICAL - 1/60/115 VOLT AC
** LOCATED IN CHARLOTTE, NC **
