Top Seller
1961 11" Y Axis 18"
Location:
Harrison, NJ
Model:
#3
Weight:
3,700 LBS

Specifications

Condition:
used
Year:
1961
Serial number:
G295
Stock number:
145915
Table size:
11" X 24"
Table movement:
11" X 18"
Grinding wheels:
3/16" TO 5"
Diamond mandrels:
1/64" TO 3/16"
Approximate weight:
3,700 LBS
Spindle to column ways:
10"
Table top to wheel collet:
2" X 18"
Spindle to column below ways:
13-1/2"
Main spindle slide adjustment:
1-1/2 DEG.
Infinitely variable spindle feeds:
2 TO 120 SPM
Infinitely variable spindle speeds:
40 TO 250 RPM
Subcategory:
Jig grinders

Description

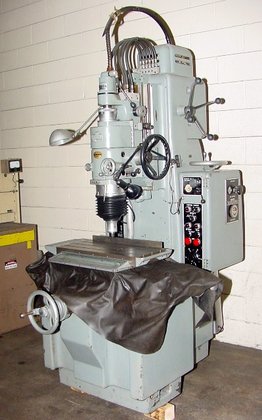

MOORE #3 JIG GRINDER
S/N: G-295 NEW: 1961
TABLE SIZE .................................... 11" X 24"
RANGE:
TABLE MOVEMENT ................................ 11" X 18"
TABLE TOP TO WHEEL COLLET ...................... 2" X 18"
SPINDLE TO COLUMN WAYS .............................. 10"
SPINDLE TO COLUMN BELOW WAYS .................... 13-1/2"
INFINITELY VARIABLE SPINDLE SPEEDS ........ 40 TO 250 RPM
INFINITELY VARIABLE SPINDLE FEEDS .......... 2 TO 120 SPM
GRINDING CAPACITY:
GRINDING WHEELS ............................. 3/16" TO 5"
DIAMOND MANDRELS ......................... 1/64" TO 3/16"
MAIN SPINDLE SLIDE ADJUSTMENT ................ 1-1/2 DEG.
EITHER WAY, 3 DEG. INCLUDED ANGLE
RADIAL OFF-SET OF GRINDING SPINDLE:
(A) - FROM CENTER TO 1-1/8" OFF CENTER BY ROUGH ADJ.
(B) - WHILE RUNNING .0001" ADJ. FOR DISTANCE OF .100"
ANYWHERE IN THE 1-1/8" RANGE
APPROXIMATE WEIGHT .......................... 3,700 LBS
APPROX. FLOOR SPACE REQUIRED .... 72"LR X 84"FB X 102"H
EQUIPPED WITH:
HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS)
HARDENED, GROUND & LAPPED LEAD SCREWS
1/2 HP VARIABLE DC MOTOR WITH RECTIFIER
(1) MOORE JIG GRINDING HEAD (60,000 RPM)
** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT; TRULY EXCEPTIONAL CONDITION & APPEARANCE **
