18.9" Swing 20" Centers Yang
Location:
Harrison, NJ
Price:
$14,500 USD
Manufacturer:
Yang lathes
Model:
SML-20
Spindle Bore:
2.4"
Spindle Nose:
A2-6

Specifications

Condition:
used
Serial number:
n/a
Stock number:
147693
New:
1999
Bar capacity:
2.0"
Spindle bore:
2.4"
Spindle nose:
A2-6
X-axis travel:
6.93"
Z-axis travel:
20.47"
Machine weight:
5,070 LBS.
Swing over slide:
12.6"
Tailstock stroke:
16.73"
Spindle horsepower:
10/15 HP
Swing over bed ways:
18.9"
Tailstock quill dia:
2.56"
Max. machining length:
20.0"
Tailstock quill taper:
MT#4
Tailstock quill stroke:
1.97"
Maximum turning diameter:
7.87"
Rapid traverse feed rate:
1,181 IPM
Number of tools in turret:
8 Tools
Subcategory:
Cnc machines

Description

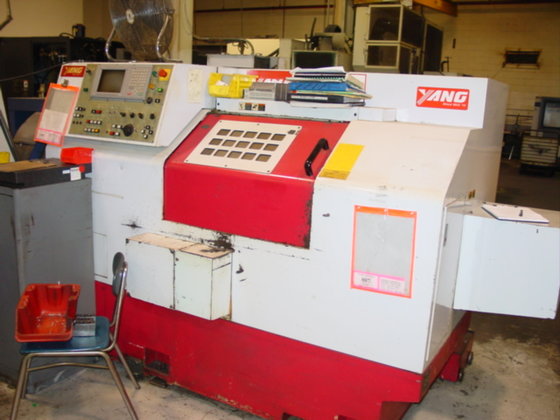

YANG SML-20 2-AXIS CNC TURNING CENTER
NEW: 1999
SPECIFICATIONS
Swing Over Bed Ways ..................... 18.9"
Swing Over Slide ........................ 12.6"
Maximum Turning Diameter ................ 7.87"
Max. Machining Length ................... 20.0"
X-Axis Travel ........................... 6.93"
Z-Axis Travel ........................... 20.47"
Spindle Bore ............................ 2.4"
Bar Capacity ............................ 2.0"
Spindle Nose ............................ A2-6
Spindle Horsepower ...................... 10/15 HP
Spindle Speed (Constant Surface Speed)... 45

4,500 RPM
Number of Tools in Turret ............... 8 Tools
Rapid Traverse Feed Rate ................ 1,181 IPM
Tailstock Stroke ........................ 16.73"
Tailstock Quill Dia. .................... 2.56"
Tailstock Quill Taper ................... MT#4
Tailstock Quill Stroke .................. 1.97"
Machine Weight .......................... 5,070 LBS.
EQUIPPED WITH:
- MITSUBISHI CNC CONTROL
- 8" 3-JAW HYDRAULIC CHUCK
- TAILSTOCK
- REAR DISCHARGE CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
