Top Seller
1978 42" Chuck 50HP Spindle
Location:
Harrison, NJ
Model:
KRTC-11A
Weight:
15,000 Lbs

Specifications

Condition:
used
Year:
1978
Serial number:
446
Stock number:
146270
Table speeds:
10, 15, 20, 30 Rpm
Maximum swing:
45"
Table diameter:
42.5"
Approximate weight:
15,000 Lbs
Spindle drive motor:
50 H.P.
Grinding wheel speed:
700 Rpm
Grinding wheel diameter:
22"
Maximum work height under new wheel:
13"

Description

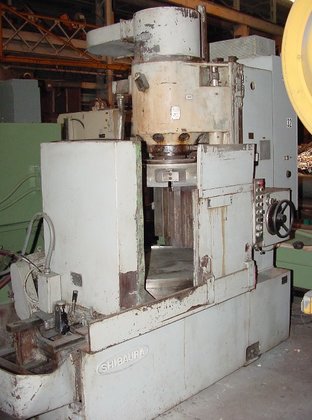

Toshiba/Shibaura (Made in Japan) High Precision Rotary Surface Grinder
Model: KRTC-11A S/N: 446 New: 1978
Table Diameter: 42.5"
Maximum Swing: 45"
Maximum Work Height Under New Wheel: 13"
Grinding Wheel Diameter: 22"
Grinding Wheel Speed: 700 Rpm
Spindle Drive Motor: 50 H.P.
Table Speeds: 10, 15, 20, 30 Rpm
Equipped With:
Vertical Spindle
Automatic Downfeed of the Grinding Wheel
22" Segmented Grinding Wheel
Power Elevation To Wheelhead Power Table Traverse
Wheel Dresser
42" Electro-Magnetic Chuck With Neutrofier Chuck Control
Self-Contained Coolant System & Wheel Guards
125" L-R X 68" F-B X 106.5" High
Approximate Weight: 15,000 Lbs
Machine is Made in Japan
** Very Good Condition & Appearance **
** Inspect Under Power in our Harrison, N.J. Warehouse **
