1966 10" Swing 20" Centers
Location:
Harrison, NJ
Model:
Landis 1R
Weight:
4,150 LBS

Specifications

Condition:
used
Year:
1966
Serial number:
826-19
Stock number:
148006
Handwheel:
0.100"
Wheel size:
16" DIAMETER
Fine feed knob:
0.001"
Workhead motor:
1/4 HP
Wheelhead motor:
3 HP
Approximate weight:
4,150 LBS
Rapid infeed stroke:
1"
Workhead spindle nose:
A2-5"
Approximate dimensions:
8'L X 4'W X 6'6"HT
Swivel table graduated:
20 DEGREES, 4" PER FOOT
Hydraulic table traverse:
2" TO 240" IPM
Maximum swing over table:
10-7/8"
Nominal swing over table:
10"
Maximum width, full wheel:
3"
Workhead spindle speeds (6):
60 TO 600 RPM
Traverse handwheel graduations:
0.001"
Traverse per turn of handwheel:
0.200"
Nominal distance between centers:
20"
Workhead swivels toward wheelhead:
90 DEGREES

Description

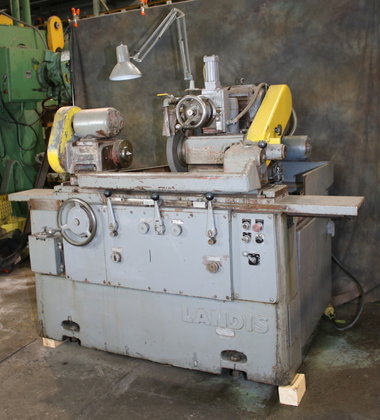

10" X 20" LANDIS HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER
MODEL: 1R S/N: 826-19 NEW: 1966
NOMINAL SWING OVER TABLE .......................... 10"
MAXIMUM SWING OVER TABLE ....................... 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS ................... 20"
HYDRAULIC TABLE TRAVERSE ................ 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL .................. 0.200"
TRAVERSE HANDWHEEL GRADUATIONS .................. 0.001"
SWIVEL TABLE GRADUATED ......... 20 DEGREES, 4" PER FOOT
WHEELHEAD:
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ....... 90 DEG.
WHEEL SIZE ................................ 16" DIAMETER
MAXIMUM WIDTH, FULL WHEEL ........................... 3"
MAXIMUM HYDRAULIC INFEED - ON DIAMETER .......... 0.090"
RAPID INFEED STROKE ................................. 1"
MINIMUM FEED GRADUATIONS - ON DIAMETER ....... 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION OF
HANDWHEEL ....................................... 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION OF
FINE FEED KNOB .................................. 0.001"
WHEELHEAD MOTOR ................................... 3 HP
WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD ........... 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD ........ 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) .............. 60 TO 600 RPM
WORKHEAD SPINDLE NOSE ............................ A2-5"
WORKHEAD MOTOR .................................. 1/4 HP
APPROXIMATE WEIGHT ........................... 4,150 LBS
APPROXIMATE DIMENSIONS .............. 8'L X 4'W X 6'6"HT
EQUIPPED WITH:
UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
HYDRAULIC TABLE TRAVERSE
AUTO PLUNGE FEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
"LIVE" WORKHEAD SPINDLE
HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
SELF-CONTAINED COOLANT SYSTEM
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED
16" GRINDING WHEEL
WHEELHEAD MOTOR IS 3 H.P./3/60/220-440 VOLTS
** - EXCELLENT CONDITION & APPEARANCE * *
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
