Top Seller
20.05" Swing 25.4" Centers Mori
Location:
Harrison, NJ
Price:
$25,000 USD
Manufacturer:
Mori seiki lathes
Model:
ZL-25B/500
Spindle Nose:
A2-6

Specifications

Condition:
used
Serial number:
456
Stock number:
147703
Main motor:
20/25 HP
Quill stroke:
3.1"
Spindle nose:
A2-6
Spindle speed:
35-3,500 RPM
Swing over bed:
20.5"
Between centers:
25.4"
Hole thru spindle:
3.1"
Machine net weight:
15,070
Tool capacity lower:
8 TOOLS
Tool capacity upper:
10 TOOLS
Tailstock body travel:
23.2"
Tailstock quill taper:
MT3
Max machining diameter:
10.2"
Swing over cross slide:
13.8"
X-axis travel upper/lower:
6.3"/5.7"
Z-axis travel upper/lower:
23.2"/23.2"
Subcategory:
Cnc machines

Description

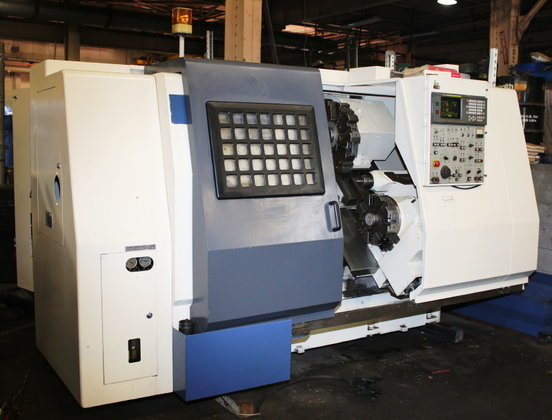

MORI SEIKI 4-AXIS CNC LATHE
MODEL: ZL-25B/500, NEW:1993
SPECIFICATIONS:
SWING OVER BED ....................... 20.5"
SWING OVER CROSS SLIDE ............... 13.8"
BETWEEN CENTERS ...................... 25.4"
MAX MACHINING DIAMETER ............... 10.2"
X-AXIS TRAVEL UPPER/LOWER ............ 6.3"/5.7"
Z-AXIS TRAVEL UPPER/LOWER ............ 23.2"/23.2"
SPINDLE SPEED ........................ 35-3,500 RPM
HOLE THRU SPINDLE .................... 3.1"
SPINDLE NOSE ......................... A2-6
TOOL CAPACITY UPPER .................. 10 TOOLS
TOOL CAPACITY LOWER .................. 8 TOOLS
QUILL STROKE ......................... 3.1"
TAILSTOCK QUILL TAPER ................ MT3
TAILSTOCK BODY TRAVEL ................ 23.2"
MAIN MOTOR ........................... 20/25 HP
MACHINE NET WEIGHT ................... 15,070
EQUIPPED WITH:
FANUC 16TT CNC CONTROL
10" 3-JAW HYDRAULIC CHUCK
10 POSITION UPPER & 8 POSITION LOWER TURRETS
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLHOLDERS
INSPECT UNDER POWER
