Top Seller
1989 26" Width 59" Length
Location:
Harrison, NJ
Manufacturer:
Mark
Model:
PSG0-60150AHR
Weight:
20,570 LBS.

Specifications

Condition:
used
Year:
1989
Serial number:
812252
Stock number:
148245
- cross:
25.9
- continuous:
2TO 60" IPM
Machine dims:
219"L x 81"W x 112"H
Spindle speed:
1800 RPM
- longitudinal:
64.9"
- auto incremental:
.003"TO 1.2"
Machine net weight:
20,570 LBS.
Wheel spindle motor:
10 HP
Vertical feed - rapid:
9.4"/MIN.
Height under 14" wheel:
20.5"
Manual incremental downfeed:
0.001" TO .0001" INCREMENTS
Standard grinding wheel(dxwxb):
14" x 2"x 5"
Hydraulic long. travel feedrate:
1.6 TO 83'3 FPM

Description

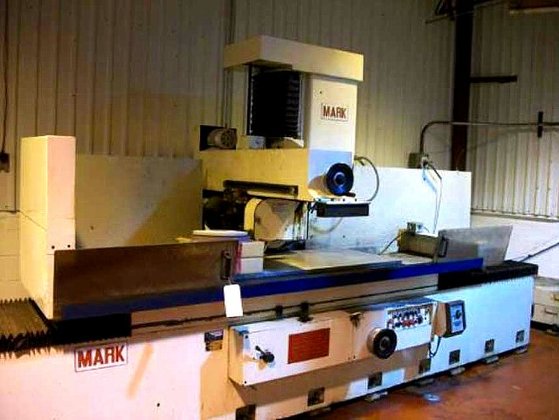

24"x 60" "MARK" (MADE BY PROTH IN TAIWAN)
SURFACE GRINDER
MODEL: PSGO-60150AHR S/N: 812252 NEW: 1989
SPECIFICATIONS:
MAX. TRAVEL RANGE
- CROSS: 25.9
- LONGITUDINAL: 64.9"
HEIGHT UNDER 14" WHEEL: 20.5"
HYDRAULIC LONG. TRAVEL FEEDRATE: 1.6 TO 83'3 FPM
CROSS FEED
- AUTO INCREMENTAL: .003"TO 1.2"
- CONTINUOUS: 2TO 60" IPM
MANUAL INCREMENTAL DOWNFEED: 0.001" TO .0001" INCREMENTS
VERTICaL FEED - RAPID: 9.4"/MIN.
STANDARD GRINDING WHEEL(DxWxB): 14" x 2"x 5"
WHEEL SPINDLE MOTOR: 10 HP
SPINDLE SPEED: 1800 RPM
MACHINE DIMS: 219"L x 81"W x 112"H
MACHINE NET WEIGHT: 20,570 LBS.
EQUIPPED WITH:
POWER LONGITUDINAL & CROSS FEEDS
*24"x60" ELECTRO MAGNETIC CHUCK
O.S. WALKER VARIABLE HOLD NEUTROFIER CONTROL
*POWER WHEEL ELEVATION
*EXTRENAL HYDRAULIC TANK & PUMP
*COOLANT SYSTEM
*TURCITE-B ON SLIDEWAYS
SPECIAL NOTE:
THIS IS A CURRENT PRODUCT, A MACHINE THAT IS MADE TODAY, AND
PARTS& SERVICE ARE READILY AVAILABLE. HERE IS THE MACHINE
TOOL BROCHURE, .
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE **
