Top Seller
1991 44" X Axis 22"
Location:
Harrison, NJ
Price:
$12,500 USD
Model:
Mycenter 5 (50 Taper)
Spindle Taper:
#50

Specifications

Condition:
used
Year:
1991
Serial number:
65124
Stock number:
148481
Table size:
55.11" x 22.4"
Spindle motor:
25 HP AC
Spindle taper:
#50
X axis travel:
44.3"
Y axis travel:
22.2"
Z axis travel:
22.4"
Machine weight:
20,680 LBS.
Spindle torque:
449 ft/lbs.
Cutting feed rate:
0.04 - 197 IPM
Maximum table load:
2200 LBS
Maximum tool length:
13.8"
Maximum tool weight:
33 LBS
Maximum tool diameter:
4.3/6.7"
Tool changer capacity:
30 TOOL
Spindle nose to table top:
6.4" - 28.9"
Rapid traverse rate x axis:
945 IPM
Rapid traverse rate y axis:
945 IPM
Rapid traverse rate z axis:
630 IPM
Subcategory:
Cnc machines

Description

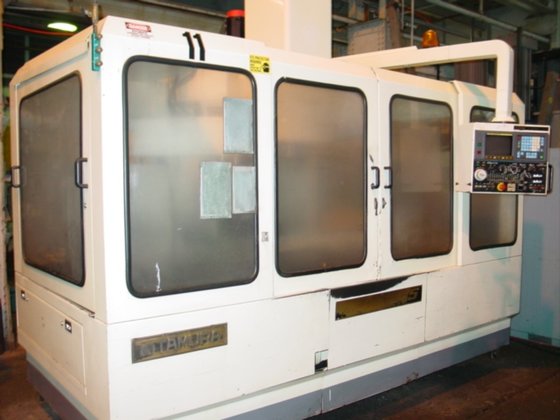

KITAMURA VERTICAL MACHINING CENTER
MODEL: MYCENTER 5, S/N: 65214, NEW: 1991
SPECIFICATIONS:
TABLE SIZE .......................... 55.11" x 22.4"
MAXIMUM TABLE LOAD .................. 2200 LBS
SPINDLE NOSE TO TABLE TOP ........... 6.4" - 28.9"
X AXIS TRAVEL ....................... 44.3"
Y AXIS TRAVEL ....................... 22.2"
Z AXIS TRAVEL ....................... 22.4"
RAPID TRAVERSE RATE X AXIS ......... 945 IPM
RAPID TRAVERSE RATE Y AXIS .......... 945 IPM
RAPID TRAVERSE RATE Z AXIS .......... 630 IPM
CUTTING FEED RATE ................... 0.04 - 197 IPM
SPINDLE SPEED RANGE (2 SPEED GEARED). 20 - 4,000 RPM
SPINDLE TAPER ....................... #50
SPINDLE MOTOR ....................... 25 HP AC
TOOL CHANGER CAPACITY .............. 30 TOOL
MAXIMUM TOOL WEIGHT ................ 33 LBS
MAXIMUM TOOL DIAMETER ............... 4.3/6.7"
MAXIMUM TOOL LENGTH ................. 13.8"
SPINDLE TORQUE ..................... 449 ft/lbs.
MACHINE WEIGHT ..................... 20,680 LBS.
EQUIPPED WITH:
FANUC OMC
CONTROL
FANUC
RED CAP AC MOTORS AND DRIVES
RIGID TAPPING
30 STATION AUTOMATIC TOOL CHANGER
BOX WAYS ALL AXES
25 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
