Top Seller
1982 20" Swing 1.5HP Spindle
Location:
Harrison, NJ
Price:
$2,250 USD
Manufacturer:
Clausing presses
Model:
2277
Capacity:
1-1/4" DIA

Specifications

Condition:
used
Year:
1982
Serial number:
524671
Stock number:
148261
- low:
150 - 1,000 R.P.M.
- high:
300 - 2,000 R.P.M.
Condition 2:
**** EXCELLENT ****
Spindle taper:
#3 MORSE
Spindle travel:
6-1/2"
Approximate weight:
640 LBS.
Capacity, hand feed:
1-1/4" DIA
Base working surface:
13" X 15-1/2"
Overall size of table:
19-1/2" X 22"
Working surface of table:
15-1/2" X 18"
Drills to center of circle:
20" DIAMETER
Max distance spindle to base:
43-3/8"
Max distance spindle to table:
33-1/8"

Description

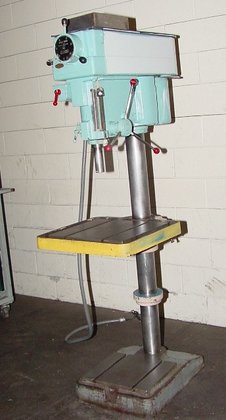

20" CLAUSING VARIABLE SPEED DRILL PRESS
MODEL: 2277, S/N: 524671, NEW: 1982
SPECIFICATIONS:
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15-1/2" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"
SPINDLE SPEED RANGES, INF VAR (2):
- LOW ............................... 150 - 1,000 R.P.M.
- HIGH .............................. 300 - 2,000 R.P.M.
APPROXIMATE WEIGHT .................... 640 LBS.
EQUIPPED WITH:
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE
* T-SLOTTED TABLE & BASE
* 3/4 / 1-1/2 H.P. 3/60/440 VOLT 900-1,800 R.P.M. TWO-SPEED
DRIVE MOTOR AND ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
