Top Seller
1996 1.5" Dia. Giddings &
Location:
Harrison, NJ
Weight:
1,200 lbs.

Specifications

Condition:
used
Year:
1996
Serial number:
940-00690-96
Stock number:
149215
Condition 2:
Excellent
Approximate weight:
1,200 lbs.
Subcategory:
Drill grinders

Description

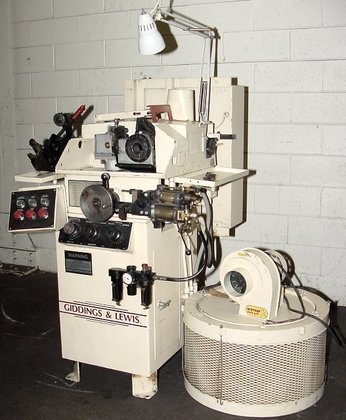

GIDDINGS & LEWIS "Winslowmatic" Drill Grinder
Model: HC S/N: 940-00690-96 New: 1996
Drill point type and capacities:
conventional point 1/16" to 1.5" diameter
helical point 1/16" to 1" diameter
racon point 1/16" to 1" diameter
split point 1/16" to 0.5" diameter
pyrcon (four facet) 1/16" to 1 diameter
Grinding wheel size 12" diameter x 5" bore x 0.75" face
Drill point included angles from 90° to 140°
Approximate weight: 1,200 lbs.
EQUIPPED WITH:
Capability to handle all types of 2-fluted, right hand drills
Lip clearance angle adjusted from the operator's control console
Point angle varied from by angular adjustment of workhead
Cam action-generated rotary motion in all three axes set at the operator's control console
Built-in cam-formed wheel dresser
Bellows airfeed attachment
Work light
1/8
H.P. coolant pump motor
.25 H.P. workhead motor
1 H.P. grinding wheel drive motor and electrical controls
3/60/230 or 460 volt input
Condition: Excellent
F.O.B. Harrison, NJ
