1995 14" Screen 20 OGP
Location:
Harrison, NJ
Model:
QL-14S

Specifications

Condition:
used
Year:
1995
Serial number:
QL142122
Stock number:
149350
Weight:
1,600 LBS (APPROX.)
Floor space:
36" L-R, 67" F-B X 74" HIGH
Screen diameter:
14"
Throat clearance:
................................. 18-3/8"
Vertical table travel:
....... 9"
Size of measuring table:
.......................... 8" X 32"
Collimator to focal plane:
........................ 10"
Cross travel for focusing:
........................ 3"
Angular measuring capacity:
....................... 360 DEGREE CHART ROTATION
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

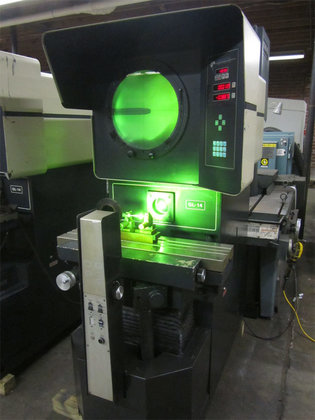

14" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)
HORIZONTAL PROJECTION FLOOR TYPE OPTICAL COMPARATOR
** DIGITAL READOUT W/PROGRAMMABLE GEOMETRIC FUNCTIONS **
MODEL: QL-14S S/N: QL142122 NEW: 1995
SCREEN DIAMETER .................................. 14"
SIZE OF MEASURING TABLE:.......................... 8" X 32"
MEASURING CAPACITY - LONGITUDINAL TABLE TRAVEL:... 12"
VERTICAL TABLE TRAVEL:....... 9"
ANGULAR MEASURING CAPACITY:....................... 360 DEGREE CHART ROTATION
CROSS TRAVEL FOR FOCUSING:........................ 3"
THROAT CLEARANCE:................................. 18-3/8"
COLLIMATOR TO FOCAL PLANE:........................ 10"
DISTANCE, OPTICAL AXIS TO WORKTABLE (MAX.MIN.).... 12"/2"
EQUIPPED WITH:
MERCURY ARC PROJECTION
HEAVY DUTY MEASURING TABLE
POWER LONGITUDINAL TABLE TRAVEL
POWER ELEVATION
TELECENTRIC RELAY LENS SYSTEM & MIRRORS FOR ERECT, UNREVERSED IMAGE
POWER 5-POSITION LENS TURRET
10X, 100X LENS
OGP DIMETRIC PLUS COMPUTATIONAL DIGITAL READOUT SYSTEM
DIGITAL ELECTRONIC ANGULAR CHART READING
ELECTRICAL - 1/60/115 VOLTS AC
FLOOR SPACE: 36" L-R, 67" F-B X 74" HIGH
WEIGHT: 1,600 LBS (APPROX.)
THIS IS THE TOP OF THE LINE!
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN CHARLOTTE, NC **
