Top Seller
1959 30" Screen Jones &
Location:
Harrison, NJ
Manufacturer:
Jones & Lamson
Model:
FC-30

Specifications

Condition:
used
Year:
1959
Serial number:
E-22529
Stock number:
148602
Maximum:
8- 1/4"
Minimum:
3- 1/4"
Vertical:
5"
(4) lenses:
10X, 20X ,31.25X & 62.5X LENSES
Longitudinal:
8"
Machine weight:
2,500 LBS
Screen diameter:
30"
Size of work table:
6" X 30"
Cross travel for focusing:
1- 3/8"
Angular measuring capacity:
360 DEG. CHART ROTATION
Floor space (small footprint):
39"LR X 91"FB X 79"H
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

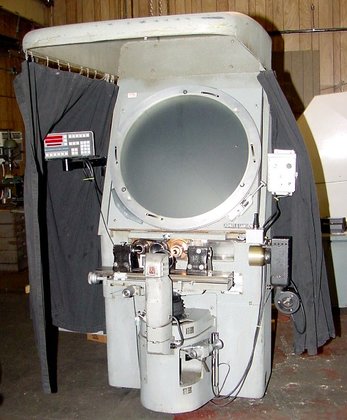

30" JONES & LAMSON OPTICAL COMPARATOR
& MEASURING MACHINE
**QUADRA-CHEK 2000 2-AXIS DIGITAL READOUT
w/PROGRAMMABLE GEOMETRIC FUNCTIONS **
MODEL: FC-30 S/N: 22529 NEW: 1959
SCREEN DIAMETER ................................................................... 30"
SIZE OF WORK TABLE ............................................................... 6" X 30"
TRAVEL OF WORK TABLE:
LONGITUDINAL ......................................................................... 8"
VERTICAL .................................................................................. 5"
ANGULAR MEASURING CAPACITY ............... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R) ............. 15 DEG
CROSS TRAVEL FOR FOCUSING ............................................... 1- 3/8"
DISTANCE, LENS CENTERLINE TO TABLE:
MAXIMUM ................................................................................... 8- 1/4"
MINIMUM .................................................................................... 3- 1/4"
FLOOR SPACE (SMALL FOOTPRINT) ......................... 39"LR X 91"FB X 79"H
MACHINE WEIGHT ...................................................................... 2,500 LBS
EQUIPPED WITH:
QUADRA-CHEK 2000 2-AXIS DIGITAL READOUT DISPLAY
WITH PROGRAMMABLE GEOMETRIC FUNCTIONS
THREE LENS MAGAZINE HOLDER
(4) LENSES ..... 10X, 20X ,31.25X & 62.5X LENSES
SET OF J & L TAILSTOCKS
UPDATED WITH SURFACE ILLUMINATION
UPDATED RECENTLY WITH POWER ELEVATION, VARIABLE
SPEED, WITH JOYSTICK
UPDATED ELECTRICS (SEE PHOTOS)
SINGLE PHASE/115 VOLT ELECTRICS
** INSPECT UNDER POWER IN HARRISON,NJ **
** EXCELLENT CONDITION & APPEARANCE **
