Top Seller
2007 30" X Axis 26"
Location:
Harrison, NJ
Price:
$69,500 USD
Spindle Taper:
CAT-50

Specifications

Condition:
used
Year:
2007
Serial number:
VJA7021
Stock number:
149866
Tool type:
CAT 50
Cutting feed:
0.04 to 591 IPM
Spindle motor:
30 HP
Spindle taper:
CAT-50
X-axis travel:
30"
Y-axis travel:
26"
Z-axis travel:
26"
Table load max:
1,210 Lbs
Rapid traverse x,y,z:
1,575 IPM
Approx machine weight:
25,300 lbs
Atuomatic tool changer:
60 Positions
Approx machine dimensions:
225" x 122" x 124" Tall
Spindle center to table top:
2" to 28"
Spindle nose to table center:
5.9" to 31.9"
Spindle speed (direct drive):
10,000 RPM
Table indexing (full 4th axis):
0.001 Degrees
Table working surface (2 pallets):
19.7" x 24.8"
Subcategory:
Cnc machines

Description

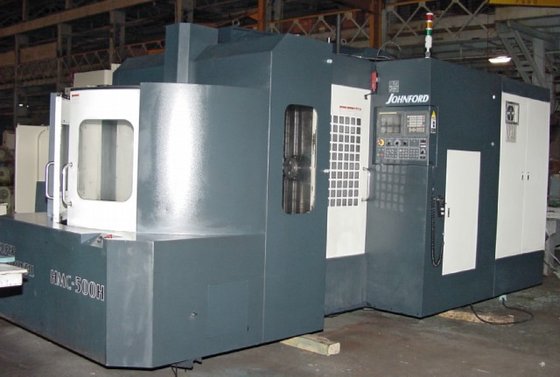

JOHNFORD HMC-500H HORIZONTAL MACHINING CENTER
MFG: 2007 INSTALLED NEW: 2008 S/N: VJA7021
SPECIFICATIONS:
X-Axis Travel............................. 30"
Y-Axis Travel............................. 26"
Z-Axis Travel............................. 26"
Spindle Center to Table Top............... 2" to 28"
Spindle Nose to Table Center.............. 5.9" to 31.9"
Table Working Surface (2 Pallets)......... 19.7" x 24.8"
Table Load Max............................ 1,210 Lbs
Table Indexing (Full 4th Axis)............ 0.001 Degrees
Spindle Motor............................. 30 HP
Spindle Taper............................. CAT-50
Spindle Speed (Direct Drive).............. 10,000 RPM
Atuomatic Tool Changer.................... 60 Positions
Tool Type................................. CAT 50
Cutting Feed.............................. 0.04 to 591 IPM
Rapid Traverse X,Y,Z...................... 1,575 IPM
Approx Machine Weight..................... 25,300 lbs
Approx Machine Dimensions.....225" x 122" x 124" Tall
Equipped With:
* Fanuc 18iMB Control
* Full 4th Axis 0.001 Degree Indexing
* 2 Pallet Automatic Pallet System
* Preped for 1,000 PSI Coolant Thru The Spindle
* Chip Conveyors (screw type)
* Chip Conveyor (caterpillar type)
* Coolant Shower System
* Spindle Oil Cooling System
* Rigid Tapping
