1978 6" Width 18" Length
Location:
Harrison, NJ
Model:
618 Micromaster Seriess II
Weight:
3,000 LBS

Specifications

Condition:
used
Year:
1978
Serial number:
523-6182-6333
Stock number:
148422
To read to:
0.0002"
Maximum cross travel:
7"
Width & length ground:
6" X 18"
Approximate floor space:
56"L X 62"D X 68"
Longitudinal table speed:
5 TO 100 FPM
Approximate machine weight:
3,000 LBS
Vertical travel of spindle:
15-3/4"
Maximum longitudinal travel:
22"

Description

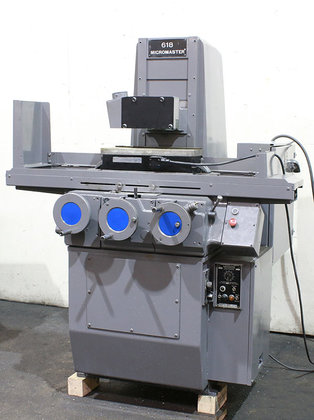

6" x 18" BROWN & SHARPE "#618 MICROMASTER SERIES II"
PRECISION HYDRAULIC SURFACE GRINDER
S/N: 523-6181-6333 NEW: 1978
WIDTH & LENGTH GROUND ..................... 6" X 18"
HEIGHT OF WORK GROUND W/STD. 7" WHEEL ...... 15-1/2"
MAXIMUM LONGITUDINAL TRAVEL ................ 22"
LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ....................... 7"
AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"
HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
VERTICAL TRAVEL OF SPINDLE ................. 15-3/4"
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................. 0.0002"
APPROXIMATE MACHINE WEIGHT ................. 3,000 LBS
APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
FINE FEED KNOB FOR CROSS FEED HANDWHEEL (.0001" GRADUATION)
1.5 H.P. BROWN & SHARPE SUPER-PRECISION
DIRECT DRIVE SPINDLE
6" X 18" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
"ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM w/COOLANT TANK, PUMP, GUARDS, HOSES, ETC.
SELF-CONTAINED HYDRAULIC SYSTEM
MOTORS ON THE MACHINE ARE 3/60/230-460 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
