Top Seller
1993 20" Swing 54" Centers
Location:
Harrison, NJ
Price:
$16,500 USD
Manufacturer:
Monarch lathes
Model:
610
Distance between Centers:
54"

Specifications

Condition:
used
Year:
1993
Serial number:
47094R
Stock number:
150046
Condition 2:
**** SUPERB ****
Width of bed:
17"
Approx weight:
8,500 LBS
Spindle taper:
D1-6"
Swing over bed:
20"
Feed range (66):
001 - .068 IPR
Approximate size:
55"W x 132" x 60"H
Hole thru spindle:
2-1/16"
Threading range (66):
2 - 120 TPI
Swing over cross slide:
13"
Tailstock spindle taper:
#4MT
Distance between centers:
54"
Spindle speed range (36):
12 - 1,500 RPM
Tailstock spindle travel:
6"
Subcategory:
Engine lathes
Subcategory 2:
Toolroom machines

Description

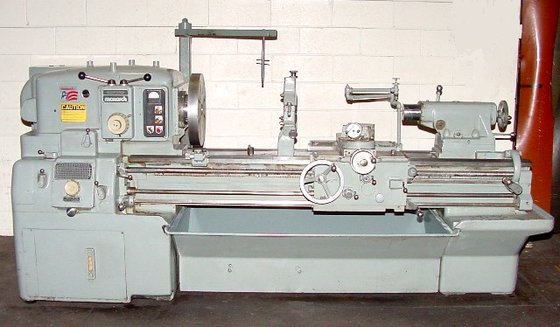

20" x 54" MONARCH ENGINE LATHE
MODEL: 610, S/N: 47094R, YEAR: 1993
SPECIFICATIONS:
SWING OVER BED ........................ 20"
SWING OVER CROSS SLIDE ................ 13"
DISTANCE BETWEEN CENTERS .............. 54"
HOLE THRU SPINDLE ..................... 2-1/16"
SPINDLE TAPER ......................... D1-6"
SPINDLE SPEED RANGE (36) .............. 12 - 1,500 RPM
THREADING RANGE (66) .................. 2 - 120 TPI
FEED RANGE (66) ....................... .001 - .068 IPR
TAILSTOCK SPINDLE TRAVEL .............. 6"
TAILSTOCK SPINDLE TAPER ............... #4MT
WIDTH OF BED .......................... 17"
APPROXIMATE SIZE ...................... 55"W x 132" x 60"H
APPROX WEIGHT ......................... 8,500 LBS
EQUIPPED WITH:
ROLLER TYPE STEADY REST
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
HARDENED BED WAYS
15 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** SUPERB ****
