Top Seller

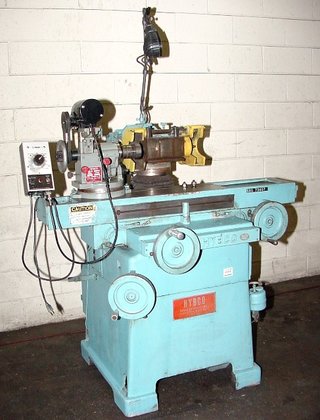

1988 Hybco 1900/2100 FORM GRINDER
Location:
Harrison, NJ
Manufacturer:
Hybco
Model:
1900/2100

Specifications

Condition:
used
Year:
1988
Serial number:
TG376/TG-496
Stock number:
150409
Cross table travel:
6-1/2"
Table working surface:
6" x 36"
Grinding spindle taper:
3" per foot
Grinding spindle rotation:
360 degrees
Longitudinal table travel:
14"
Grinding spindle speeds (2):
3800 & 6400 RPM
Grinding wheel maximum diameter:
7"
Grinding spindle, vertical travel:
7-1/4?
Subcategory:
Form grinders

Description

HYBCO Form Relief Grinder
Model 1900/2100 S/N TG376/TG-496 (New 1988)
Table working surface:6" x 36"
Longitudinal table travel: 14"
Cross table travel:6-1/2"
Grinding spindle, vertical travel: 7-1/4?
Grinding spindle rotation: 360 degrees
Grinding spindle tilt, either side of horizontal: 25 Degrees
Grinding spindle speeds (2): 3800 & 6400 RPM
Grinding wheel maximum diameter: 7"
Grinding spindle taper: 3" per foot
Equipped with:
Model 2100-SB two-way (radial and axial) motorized relieving fixture, S/N RF-1468/RF-1161,
with swivel base, type 5C spindle (1-1/16" thru hole capacity), and Motor Master
20000 series Rheastic control of spindle speed as well as toggle switches for On/Off,
Fwd/Rev, and Run/Stop
Tangent angle wheel dresser with 360° graduated sliding base and five minute vernier
Full cast iron construction
Roller bearing ways on wheelhead and longitudinal slides
Wheel head slide controlled by precision ground ball screw
BIJUR one-shot lubrication system
1-1/2 H.P. 3/60/460 volt wheelhead drive motor and electrical controls
Machine is wired for 460 volt operation.
