1987 4' Arm Lth 12" Col Dia Breda R50-1250 RADIAL DRILL, Power Elevation & Clamping, #5MT, 6.5 HP,T-Slotted in Harrison, NJ, USA

Top Seller
1987 4' Arm Lth 12"
Location:
Harrison, NJ, USA
Price:
$14,500 (USD)
Manufacturer:
Breda
Model:
R50-1250
Weight:
5,500 LBS

Specifications

Condition:
used
Year:
1987
Serial number:
170
Stock number:
150498
Condition 2:
**** SUPERB ****
Spindle taper:
#5MT
Column diameter:
12"
Spindle taper 2:
NO. 5 MORSE
Spindle diameter:
3"
Spindle feeds (8):
0025, .004, .005, .008,
Stroke of spindle:
12-1/2"
Spindle speed range(12):
35 - 1500 RPM
Working surface of base:
35-1/2" X 52"
Maximum spindle to column:
48"
Minimum spindle to column:
9"
Approximate machine weight:
5,500 LBS
Approximate shipping dimensions:
36"W x 80"L x 93"H
Maximum distance spindle to base:
54"
Minimum distance spindle to base:
27"
Category:
Machine Tools equipment in United States
Subcategory:
Radial arm drills

Description

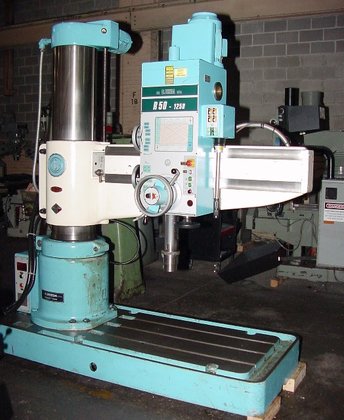

4' X 12" BREDA RADIAL DRILL
MODEL: R50-1250, S/N: 170, NEW: 1987
SPECIFICATIONS:
COLUMN DIAMETER ....................... 12"
MAXIMUM SPINDLE TO COLUMN ............. 48"
MINIMUM SPINDLE TO COLUMN ............. 9"
MAXIMUM DISTANCE SPINDLE TO BASE ...... 54"
MINIMUM DISTANCE SPINDLE TO BASE ...... 27"
STROKE OF SPINDLE ..................... 12-1/2"
SPINDLE TAPER ......................... #5MT
SPINDLE SPEED RANGE(12) ............... 35 - 1500 RPM
SPINDLE TAPER ......................... NO. 5 MORSE
SPINDLE DIAMETER ...................... 3"
SPINDLE FEEDS (8) ................ 0025, .004, .005, .008,
.0012, .017, .025 & .040 IPR
WORKING SURFACE OF BASE ............... 35-1/2" X 52"
APPROXIMATE MACHINE WEIGHT ............ 5,500 LBS
APPROXIMATE
APPROXIMATE SHIPPING DIMENSIONS ....... 36"W x 80"L x 93"H
EQUIPPED WITH:
POWER ELEVATION & CLAMPING OF ARM ON COLUMN
T-SLOTTED BASE
COOLANT SYSTEM
6.5 HORSE POWER SPINDLE MOTOR
VIDEO:

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
BOUGHT FROM A FORTUNE 500 TOOLROOM
CONDITION: **** SUPERB ****
