Top Seller
1984 12.5" Hole 30" Swing
Location:
Harrison, NJ
Price:
$85,500 USD
Manufacturer:
Kingston lathes
Distance between Centers:
120"
Spindle Nose:
A2-20

Specifications

Condition:
used
Year:
1984
Serial number:
037010615
Stock number:
150820
Width of bed:
22"
Swing over bed:
30"
Approximate weight:
17,750 LBS.
Hole through spindle:
12-19/32"
Spindle nose camlock:
A2-20
Swing over cross slide:
20-3/4"
Approximate floor space:
62" X 206"
Tailstock spindle taper:
#6MT
Distance between centers:
120"
Spindle speed range (16):
5 - 300 RPM
Tailstock spindle travel:
11-13/16"
Metric threading range(40):
1 - 28MM
Tailstock spindle diameter:
3-15/16"
English threading range(50):
2 - 28 TPI
Longitudinal feed range (40):
0024" - .0337" IPR
Subcategory:
Toolroom machines

Description

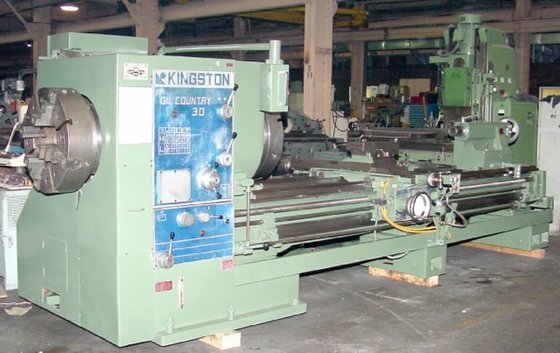

30" X 120" KINGSTON HOLLOW SPINDLE ENGINE LATHE
MODEL: HK3000, S/N: 037010615, NEW: 1984
SPECIFICATIONS:
SWING OVER BED........................ 30"
SWING OVER CROSS SLIDE................ 20-3/4"
SPINDLE NOSE CAMLOCK.................. A2-20
HOLE THROUGH SPINDLE.................. 12-19/32"
DISTANCE BETWEEN CENTERS.............. 120"
SPINDLE SPEED RANGE (16).............. 5 - 300 RPM
LONGITUDINAL FEED RANGE (40).......... .0024" - .0337" IPR
CROSS FEEDS HALF OF LONGITUDINAL
ENGLISH THREADING RANGE(50)........... 2 - 28 TPI
METRIC THREADING RANGE(40)............ 1 - 28MM
WIDTH OF BED ......................... 22"
TAILSTOCK SPINDLE DIAMETER............ 3-15/16"
TAILSTOCK SPINDLE TRAVEL.............. 11-13/16"
TAILSTOCK SPINDLE TAPER............... #6MT
APPROXIMATE FLOOR SPACE............... 62" X 206"
APPROXIMATE WEIGHT.................... 17,750 LBS.
EQUIPPED WITH:
- (2) 24" 4-JAW CHUCKS WITH 12-19/32" THRU HOLES
- TAPER TURNING ATTACHMENT
- MICROMETER CARRIAGE STOP
- COOLANT SYSTEM
- LIVE CENTER FOR TAILSTOCK
- RAPID TRAVERSE
- 20 HP MAIN DRIVE MOTOR
