1981 6" Width 18" Length
Location:
Harrison, NJ
Weight:
3,000 LBS

Specifications

Condition:
used
Year:
1981
Serial number:
523-6181-7218
Stock number:
150475
To read to:
0.0002"
Maximum cross travel:
7"
Width& length ground:
6" X 18"
Approximate floor space:
56"L X 62"D X 68"
Longitudinal table speed:
5 TO 100 FPM
Approximate machine weight:
3,000 LBS
Vertical travel of spindle:
15-3/4"
Maximum longitudinal travel:
22"
Height of work ground w/12" wheel:
10- 1/2"

Description

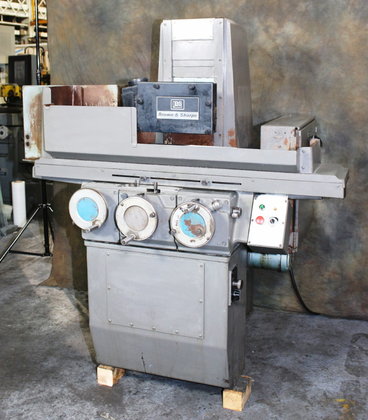

6" x 18" BROWN & SHARPE "#618 MICROMASTER SERIES II"
PRECISION HYDRAULIC SURFACE GRINDER w/12" GRINDING WHEEL
S/N: 523-6181-7218 NEW: 1981
WIDTH& LENGTH GROUND ..................... 6" X 18"
HEIGHT OF WORK GROUND W/12" WHEEL .......... 10- 1/2"
MAXIMUM LONGITUDINAL TRAVEL ................ 22"
LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ....................... 7"
AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"
HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
VERTICAL TRAVEL OF SPINDLE ................. 15-3/4"
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
APPROXIMATE MACHINE WEIGHT ................. 3,000 LBS
APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
FINE FEED KNOB FOR VERTICAL FEED HANDWHEEL (.0001" GRADUATION)
12" DIAMETER X 1-2" WIDE X 3" BORE GRINDING WHEEL
2 H.P. BROWN & SHARPE SUPER-PRECISION
DIRECT DRIVE SPINDLE, 1700 RPM, 3/60/230/460 VOLTS
6" X 18" ECLIPSE FINE DIVISION PERMANENT-MAGNETIC CHUCK
SPLASH GUARDS AROUND CHUCK
SELF-CONTAINED HYDRAULIC SYSTEM
PRESENTLY WIRED FOR 460 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
