Top Seller
1996 14" Swing 60" Centers
Location:
Harrison, NJ
Manufacturer:
Ecotech
Model:
MB1332B
Weight:
9,460 LBS.

Specifications

Condition:
used
Year:
1996
Serial number:
72
Stock number:
150063
Approx. dims:
165" L-R, 72" DEEP, 66" HIGH
Traverse speed:
2" TO 160" IPM
Workhead taper:
#4 MT OR #5MT
Tailstock taper:
#4 MT
Auto plunge infeed:
YES
Plunge infeed speed:
2" TO 60" IPM
Approx. machine weight:
9,460 LBS.
Distance between centers:
59"
Max. travel of leadscrew:
9"
Maximum swing over table:
14.2"
Tailstock spindle travel:
1.2"
Grinding wheel spindle speed:
1,130 RPM
Standard grinding wheel size:
24" O.D. X 3"W
Table swivels, clockwise/ccw:
3 DEG./4 DEG.
Travel per div. of handwheel:
0.0002"
Travel per rev. of handwheel:
0.04"
Max. workload between centers:
400 LBS.
Minimum auto infeed increment:
0.0002"
Rapid hydraulic infeed stroke:
2"
Workhead spindle speeds (6 speeds):
32 TO 312 RPM
Automatic infeed per table reversal:
YES

Description

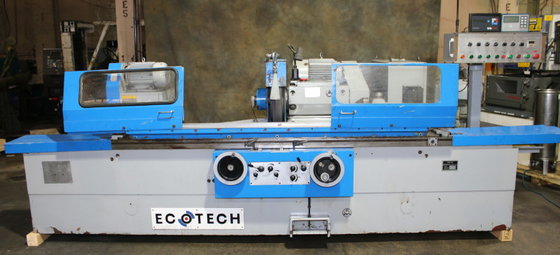

14.2" X 59" ECOTECH (SMTW) CYLINDRICAL GRINDER
MODEL: MB1332BX1500 S/N: 72 NEW: 1996
MAXIMUM SWING OVER TABLE .............. 14.2"
DISTANCE BETWEEN CENTERS ................ 59"
MAX. WORKLOAD BETWEEN CENTERS ........... 400 LBS.
WORK CARRIAGE:
TRAVERSE SPEED........................... 2" TO 160" IPM
TABLE SWIVELS, CLOCKWISE/CCW ............ 3 DEG./4 DEG.
WHEELHEAD& WHEEL FEED:
STANDARD GRINDING WHEEL SIZE............. 24" O.D. X 3"W
X 12" HOLE
GRINDING WHEEL SPINDLE SPEED ............ 1,130 RPM
AUTOMATIC INFEED PER TABLE REVERSAL ..... YES
MINIMUM AUTO INFEED INCREMENT ........... 0.0002"
AUTO PLUNGE INFEED ...................... YES
PLUNGE INFEED SPEED ..................... 2" TO 60" IPM
RAPID HYDRAULIC INFEED STROKE............ 2"
MAX. TRAVEL OF LEADSCREW ................ 9"
TRAVEL PER REV. OF HANDWHEEL ............ 0.04"
TRAVEL PER DIV. OF HANDWHEEL ............ 0.0002"
MOTORIZED WORKHEAD AND TAILSTOCK:
WORKHEAD SPINDLE SPEEDS (6 SPEEDS) ...... 32 TO 312 RPM
WORKHEAD TAPER........................... #4 MT OR #5MT
TAILSTOCK TAPER.......................... #4 MT
TAILSTOCK SPINDLE TRAVEL ................ 1.2"
APPROX. MACHINE WEIGHT ............... 9,460 LBS.
APPROX. DIMS. ........................ 165" L-R, 72" DEEP, 66" HIGH
EQUIPPED WITH:
"NEWALL" DRO DISPLAY
"MARPOSS" AUTOMATIC WHEEL BALANCING SYSTEM
ELECTRONIC AC INVERTER PROVIDING FOR INFINITELY
VARIABLE WORKHEAD SPINDLE SPEEDS
MACHINE FEATURES:
HYDRO-DYNAMIC WHEELHEAD SPINDLE BEARINGS
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED @ TABLE REVERSAL
AUTO PLUNGE INFEED
HYDRAULIC RAPID WHEELHEAD ADVANCE/RETRACTION
"DEAD" HEADSTOCK SPINDLE
HYDAULICALLY ACTUATED TAILSTOCK WITH FOOT PEDAL
EXTERNAL COOLANT TANK & PUMP
15 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
Please see link to video of machine under power

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** ORIGINAL PAINT - EXCEPTIONAL APPEARANCE & CONDITION **
