Top Seller
1990 35 Ton 72" Bed
Location:
Harrison, NJ
Price:
$14,500 USD
Manufacturer:
Pacific
Model:
35-6 (Tri-Acro-Pacific)
Stroke:
2"
Capacity:
6' X 14 GA.

Specifications

Condition:
used
Year:
1990
Serial number:
1255-P
Stock number:
151017
Tonnage:
35 TONS
Capacity:
6' X 14 GA.
Shut height:
9"
Throat depth:
9"
Stroke length:
2"
Ram adjustment:
3"
Punching capacity:
23.31 TONS
Approximate weight:
5,500 LBS
Overall bed length:
72"
Approximate dimensions:
72" X 40" X 92" H
Distance between housings:
62"

Description

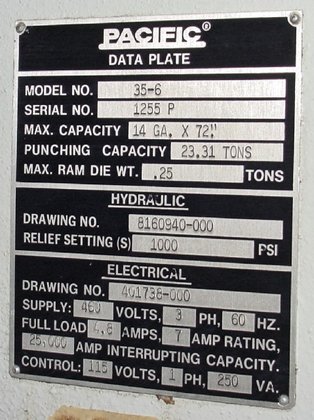

35 TON x 6' PACIFIC / TRI-ACRO HYDRA-MECHANICAL BRAKE
w/ COMP-U-BEND 610 CNC BACKGAUGE
MODEL 35-6 S/N 1255-P NEW 1990
CAPACITY .................................... 6' X 14 GA.
.................................... 4' X 12 GA.
.................................... 34" X 10 GA.
TONNAGE ..................................... 35 TONS
PUNCHING CAPACITY ........................... 23.31 TONS
OVERALL BED LENGTH .......................... 72"
DISTANCE BETWEEN HOUSINGS ................... 62"
STROKE LENGTH ............................... 2"
RAM ADJUSTMENT .............................. 3"
SHUT HEIGHT ................................. 9"
THROAT DEPTH ................................ 9"
APPROXIMATE DIMENSIONS ................. 72" X 40" X 92" H
APPROXIMATE WEIGHT ......................... 5,500 LBS
EQUIPPED WITH:
- COMP-U-BEND MODEL 610 CNC BACK GAUGE
- STROKE SELECTION - SET UP, INCH OR AUTO RETURN
- DUAL PALM BUTTONS ON PEDESTAL STAND
- HAND - FOOT SWITCH
- VARIABLE SPEED (HI - SLO)
- ISB MERLIN LIGHT CURTAIN
