Top Seller
2000 27.5" X Axis 3HP
Location:
Harrison, NJ
Price:
$8,500 USD
Manufacturer:
Manford
Model:
CV-175
Spindle Taper:
R-8
Control:
3,000 LBS.

Specifications

Condition:
used
Year:
2000
Serial number:
0391
Stock number:
151054
Model 2:
CV-175 w/ ANILAM 3200MK CONTROL
Category 2:
Mills
Ram travel:
20"
Table size:
11" x 52"
Knee travel:
16"
Anilam model:
3200MK
Spindle feeds:
0015, .003, .006 IPR
Spindle taper:
R-8
Spindle speed range:
60 - 4200 RPM
Quill travel (z-axis):
5"
Table travel (x-axis):
27"
Weight (with control):
3,000 LBS.
Approximate dimensions:
82"D x 70"W x 87"H
Saddle travel (y-axis):
16"
Subcategory:
Cnc machines

Description

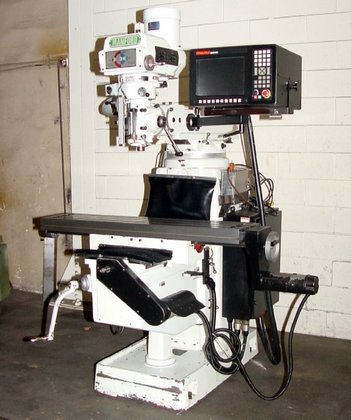

MANFORD VERTICAL MILL
MODEL: CV-175 w/ ANILAM 3200MK CONTROL
2-AXIS CNC PLUS MANUAL HANDWHEELS
S/N: 0391 NEW: 2000
SPECIFICATIONS:
TABLE SIZE....................... 11" x 52"
TABLE TRAVEL (X-AXIS)............ 27"
SADDLE TRAVEL (Y-AXIS)........... 16"
QUILL TRAVEL (Z-AXIS)............ 5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 20"
SPINDLE TAPER.................... R-8
SPINDLE SPEED RANGE.............. 60 - 4200 RPM
SPINDLE FEEDS.................... .0015, .003, .006 IPR
APPROXIMATE DIMENSIONS .......... 82"D x 70"W x 87"H
WEIGHT (WITH CONTROL)............ 3,000 LBS.
EQUIPPED WITH:
ANILAM MODEL: 3200MK
CONTROL FOR BOTH CONVERSATIONAL & G-CODE
Z-AXIS SCALE FOR QUILLS POSITION
NEW LCD SCREEN
THREE AXIS DIGITAL READOUT IN MANUAL MODE
X & Y BALLSCREWS AND SERVO MOTORS
HARDENED BOX WAYS
BIJUR
AUTOMATIC LUBRICATION SYSTEM
3 HORSE POWER SPINDLE MOTOR
TRANSITION FROM TWO AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
