Top Seller
1986 6" Width 18" Length
Location:
Harrison, NJ
Model:
618 VALUEMASTER

Specifications

Condition:
used
Year:
1986
Serial number:
523-618-5017
Stock number:
151261
New:
1986
S/n:
523-2618-5017
Maximum:
18"
Cross travel:
7"
Approx. machine eight:
1,725 LBS.
Width & length ground:
6" X 18"
Std. grinding wheel size:
8" X 1/2"
To top of table, minimum:
3-1/4"
Longitudinal table travel:
20"
Approx. machine dimensions:
52" X 40" X 74"
Height of work ground w/7" wheel:
15"

Description

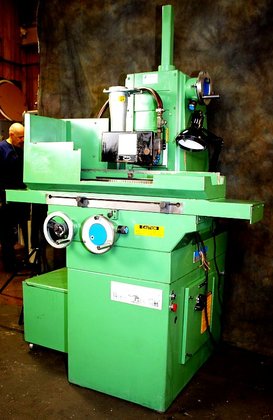

6" X 18" BROWN & SHARPE (MADE IN USA)
"SUPER-PRECISION" HAND FEED SURFACE GRINDER
MODEL: 618 VALUEMASTER
S/N: 523-2618-5017
NEW: 1986
WIDTH & LENGTH GROUND ........................... 6" X 18"
HEIGHT OF WORK GROUND W/7" WHEEL ................ 15"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ...................... 3-1/4"
MAXIMUM ...................... 18"
LONGITUDINAL TABLE TRAVEL ....................... 20"
CROSS TRAVEL .................................... 7"
CROSS HANDWHEEL GRADUATED TO READ TO ........... 0.0002"
CROSS, FINE FEED KNOB GRADUATED TO READ TO ...... 0.0001"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE ............ 15-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ......... 0.0002"
VERTICAL, FINE FEED KNOB GRADUATED TO READ TO .. 0.0001"
STD. GRINDING WHEEL SIZE ........................ 8" X 1/2"
APPROX. MACHINE EIGHT ......................... 1,725 LBS.
APPROX. MACHINE DIMENSIONS .................... 52" X 40" X 74"
EQUIPPED WITH:
ROLLER BEARING TABLE
FINE FEED KNOBS FOR CROSS& VERTICAL FEEDS (.0001")
6" X 12" WALKER” “FINE-DIVISION” PERMANENT MAGNETIC
CHUCK
BIJUR ONE-SHOT LUBRICATOR
‘VAC-U-GUARD” WHEEL COVER
BROWN& SHARPE SUPER-PRECISION SPINDLE DRIVE
3/60/230-460 VOLTS ELECTRICS
SPECIAL NOTE:
WE SENT THE SPINDLE OUT FOR REBUILD, WHICH WAS DONE ON 7/23/2014.
COST FOR THE REBUILD WAS $1,900.
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
** EXCEPTIONAL CONDITION & APPEARANCE **
