Top Seller
1984 3" Dia. Oliver 600
Location:
Harrison, NJ
Model:
Oliver 600
Weight:
1,630 LBS.

Specifications

Condition:
used
Year:
1984
Serial number:
G8529
Stock number:
151250
Capacity:
1/2" TO 3" DIAMETER
Approx dimensions:
37"L-R X 49"F-B
Right hand spiral:
2-4 FLUTE DRILLS
Approximate weight:
1,630 LBS.
Grinding wheel size:
9" X 2" X 5" CUP TYPE
Included point angles:
80 TO 160 DEGREES
Subcategory:
Drill grinders

Description

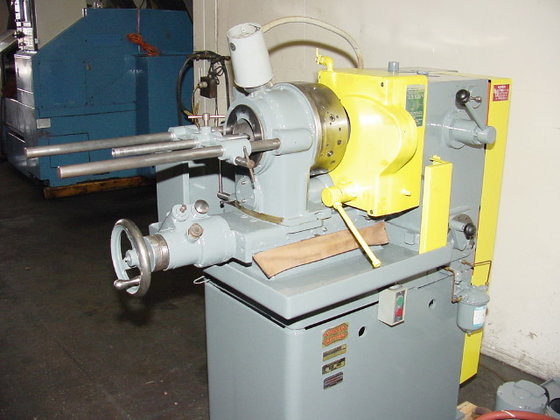

OLIVER DRILL GRINDER
W/"AIRDRAULIC" AUTOMATIC INFEED
MODEL: 600 S/N: G8529 NEW: 1984
CAPACITY .......................... 1/2" TO 3" DIAMETER
RIGHT HAND SPIRAL .................... 2-4 FLUTE DRILLS
INCLUDED POINT ANGLES ............... 80 TO 160 DEGREES
GRINDING WHEEL SIZE ............. 9" X 2" X 5" CUP TYPE
APPROX DIMENSIONS: 37"L-R X 49"F-B
APPROXIMATE WEIGHT ......................... 1,630 LBS.
EQUIPPED WITH:
"AIRDRAULIC" AUTOMATIC INFEED
- UNIT THAT ALLOWS THE OPERATOR TO SELECT THE RATE
OF INFEED& THE TOTAL AMOUNT OF STOCK REMOVAL.
THIS FEATURE, COMBINED WITH AUTOMATIC GRINDING
CYCLE, PERMITS THE MACHINE TO FUNCTION WITHOUT
AN OPERATOR ONCE THE LOADING& OPERATING
SEQUENCE HAS BEEN COMPLETED.
ADJUSTABLE SCROLL TYPE CHUCK
VARIABLE CLEARANCE CONTROL
COOLANT TANK & PUMP
3/60/220-440 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** MACHINE WAS CYCLED, THOROUGHLY SERVICED, TAKEN APART, CLEANED &
PAINTED.
** EXCEPTIONAL CONDITION & APPEARANCE **
