1996 30" Screen 18 Jones
Location:
Harrison, NJ
Model:
EPIC-230

Specifications

Condition:
used
Year:
1996
Serial number:
E-72141
Stock number:
151399
Maximum:
10"
Minimum:
1"
Vertical:
9"
Floor space:
61"LR X 123"FB X 82"H
Longitudinal:
12"
Machine weight:
5,200 LBS
Screen diameter:
30"
Size of work table:
8-1/2" X 32"
Maximum throat clearance:
30"
Cross travel for focusing:
3"
Angular measuring capacity:
360 DEG. CHART ROTATION
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

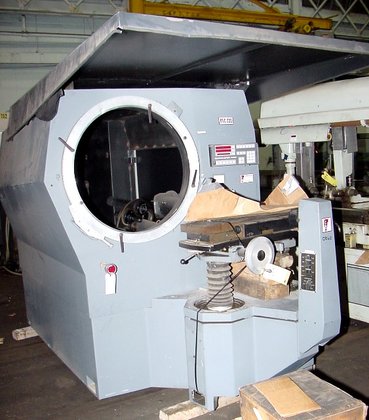

30" JONES & LAMSON (MADE IN USA)
OPTICAL COMPARATOR & MEASURING MACHINE
MODEL: EPIC-230 S/N: E-72141 NEW: 1996
SCREEN DIAMETER ................................ 30"
SIZE OF WORK TABLE ........................ 8-1/2" X 32"
MEASURING CAPACITY (TRAVEL OF WORK TABLE)
LONGITUDINAL ................................... 12"
VERTICAL ........................................ 9"
ANGULAR MEASURING CAPACITY...... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R)...... 15 DEG
CROSS TRAVEL FOR FOCUSING ....................... 3"
MAXIMUM THROAT CLEARANCE ........................ 30"
DISTANCE FOCAL PLANE TO ERECTOR LENS ............ 13"
DISTANCE FOCAL PLANE TO CONDENSING LENS ......... 17"
DISTANCE, LENS CENTERLINE TO TABLE:
MAXIMUM ......................................... 10"
MINIMUM ......................................... 1"
FLOOR SPACE ...................... 61"LR X 123"FB X 82"H
MACHINE WEIGHT ............................... 5,200 LBS
EQUIPPED WITH:
10X, 20X & 50X LENSES
QUADRA-CHEK 2000 DIGITAL READOUT
w/PROGRAMMABLE GEOMETRIC FUNCTIONS
NOVA-LITE PROJECTION
MERCURY ARC LIGHTING
TWIN SPINDLE TABLE DESIGN
6-POSITION POWER LENS TURRET
TABLE POSITION INDICATOR
POWER TABLE TRAVERSE
POWER ELEVATION FOR TABLE
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
