1989 Deckel S11 TOOL &
Location:
Harrison, NJ

Specifications

Condition:
used
Year:
1989
Serial number:
1217
Stock number:
148844
Spindle motor:
1.75 H.P.
Worktable swivel:
360 DEG.
Spindle axial feed:
0.187"
Max. wheel diameter:
5"
Worktable cross travel:
4"
Spindle, vertical travel:
13"
Spindle speed range (rpm):
2,000 TO 10k
Max. cut-off wheel diameter:
8"
Wortable longitudinal travel:
7.5"
Spindle column swivel, vertical:
360 DEG.
Spindle column swivel, horizontal:
360 DEG.
Max. workpiece dia. between centers:
13.5"

Description

DECKEL UNIVERSAL TOOL & CUTTER GRINDER

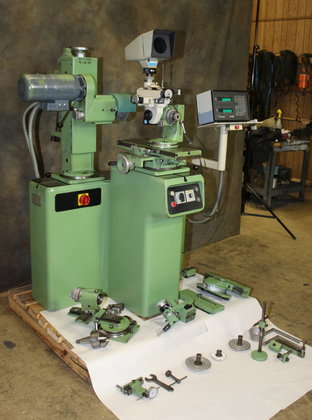

WITH MANY ACCESSORIES AS DESCRIBED & SHOWN IN OUR PHOTOS
** ADJUSTABLE THROUGH 360 DEG. IN 5 AXES **
TYPE: S11 S/N: 1217 NEW: 1989
WORTABLE LONGITUDINAL TRAVEL .................. 7.5"
WORKTABLE CROSS TRAVEL ........................ 4"
SPINDLE, VERTICAL TRAVEL ...................... 13"
SPINDLE AXIAL FEED ............................ 0.187"
MAX. WORKPIECE DIA. BETWEEN CENTERS ........... 13.5"
MAX. WORKPIECE LENGTH BETWEEN CENTERS ......... 37"
SPINDLE COLUMN SWIVEL, HORIZONTAL ............. 360 DEG.
SPINDLE COLUMN SWIVEL, VERTICAL ............... 360 DEG.
WORKTABLE SWIVEL .............................. 360 DEG.
UNIVERSAL INDEX HEAD SWIVE, HORIZONTAL ........ 360 DEG.
UNIVERSAL INDEX HEAD SWIVEL, VERTICAL ......... 360 DEG.
MAX. WHEEL DIAMETER ........................... 5"
MAX. CUT-OFF WHEEL DIAMETER ................... 8"
SPINDLE MOTOR ................................. 1.75 H.P.
SPINDLE SPEED RANGE (RPM) ..................... 2,000 TO 10k
EQUIPPED WITH:
ACCESSORIES INCLUDE THE FOLLOWING:
- "OPTO-ELECTRONIC MEASURING UNIT" ... ATTACHES DIRECTLY
TO THE UNIVERSAL HEAD. USED WITH THE PROJECTOR,
ALLOWS THE OPERATOR TO OPTICALLY INSPECT THE TOOL
AS IT IS BEING HELD IN THE WORKHEAD. UNIT IS COMPLETE
WITH A "RSK-ELEKTRONIC MODEL #Z-502" 2-AXIS DIGITAL
READOUT DISPLAY.
"SPIRAL & RELIEF GRINDING ATTACHMENT" (DECKEL PART #2580000)
FOR GRINDING TOOLS WITH R.H. OR L.H. FLUTES& FOR RELIEF
GRINDING OF COUNTERBORES, TAPS, SPADE DRILLS& PROFILED
CUTTERS, THE UNIVERSAL INDEX HEAD CAN BE COMBINED WITH
THE TWIST& RELIEF GRINDING ATTACHEMENT. IT'S LEAD RANGE
IS FROM 0 TO INFINITY. THE RELIEF GRINDING MOTION CAN BE
AXIAL, RADIAL OR A COMBINTION OF THE TWO.
"RADIUS GRINDING ATTACHMENT" (DECKEL PART #2601000).
CONVEX& CONCAVE RADII ON TOOLS STRAIGHT, BEVELLED &
SPIRAL FLUTES, OR ON SINGLE-LIP CUTTERS AND ON TURNING
TOOLS ARE NO PROBLEM. WITH IT, YOU CAN ALSO GRIND THE
CURVED FLUTES OF DIE SINKING CUTTERS TO THE CORRECT ARC.
WITH THE HELP OF THE SUPPORT FINGER, YOU CAN GRIND PERFECT
FLANKS ON SPIRAL-FLUTED RADII CUTTING TOOLS. EVEN RADIAL
&PERIPHERAL CUTTING EDGES CAN BE GROUND IN A SINGLE
"UNIVERSAL WHEEL DRESSER", DECKEL PART #2628000. FOR
PROFILING OF GRINDING WHEELS, RADII& CYLINDRICAL, TAPERED
& PLANE SURFACES.
TAILSTOCK CENTER ATTACHMENT
LARGE ASSORTMENT OF COLLETS, CAN BE USED FOR BOTH THE WORKHEAD
& RADIUS ATTACHMENT
SETTING GAUGE
"LARGE" 6-JAW CHUCK WITH ADAPTOR TO MOUNT IN WORKHEAD
ASSORTMENT OF GRINDING WHEELS
ALL OTHER ACCESSORIES AS SHOWN IN THE PHOTOS
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
