Top Seller
1988 50 Ton 10" Stroke
Location:
Harrison, NJ
Price:
$7,450 USD
Manufacturer:
Dake presses
Model:
908050-4
Capacity:
50 TONS

Specifications

Condition:
used
Year:
1988
Serial number:
188295
Stock number:
151206
Weight:
1,360 LBS.
Ram travel:
10"
Ram to table:
10-1/8" - 45-1/8"
Rated capacity:
50 TONS
Pulling capacity:
18 TONS
Motor horse power:
2
Overall dimensions:
43-1/2" X 36" X 86" H
Width between uprights:
32-3/4"
Inches per minute (pressing):
8
Width between table channels:
7-1/4"
Inches per minute (returning):
22

Description

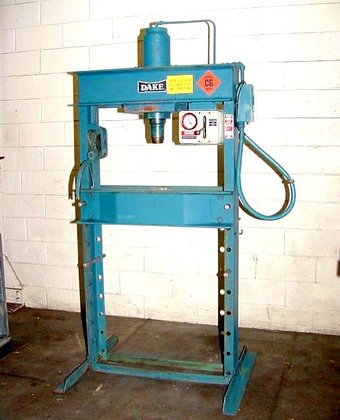

50 TON DAKE ELEC-DRAULIC II H-FRAME HYD. PRESS
MODEL 908050-4 S/N 188295 NEW 1988
RATED CAPACITY .............................. 50 TONS
PULLING CAPACITY ............................ 18 TONS
WIDTH BETWEEN UPRIGHTS ...................... 32-3/4"
WIDTH BETWEEN TABLE CHANNELS ................ 7-1/4"
RAM TO TABLE ................................ 10-1/8" - 45-1/8"
RAM TRAVEL .................................. 10"
INCHES PER MINUTE (PRESSING) ................ 8
INCHES PER MINUTE (RETURNING) ............... 22
MOTOR HORSE POWER ........................... 2
EQUIPPED WITH:
- ADJUSTABLE TABLE WITH SELF-LOCKING HOIST
- ELECTRIC OPERATION
- DOUBLE ACTING CYLINDER
- VARIABLE RAM SPEED
- OVERLOAD SAFETY VALVE
OVERALL DIMENSIONS: 43-1/2" X 36" X 86" H
WEIGHT: 1,360 LBS.
