Top Seller
1985 6" Width 18" Length
Location:
Harrison, NJ
Model:
2Z
Weight:
1,800 LBS

Specifications

Condition:
used
Year:
1985
Serial number:
5225-ZV-85
Stock number:
151688
Centerline):
20"
Cross handwheel grad:
0.0001"
Grinding wheel sizes:
3.5" TO 10" DIAMETER
Transverse table travel:
6"
Vertical handwheel grad:
0.001"
Longitudinal table travel:
18"
Approximate machine weight:
1,800 LBS
Infinitely variable spindle speeds:
1,800 TO 5,400 RPM

Description

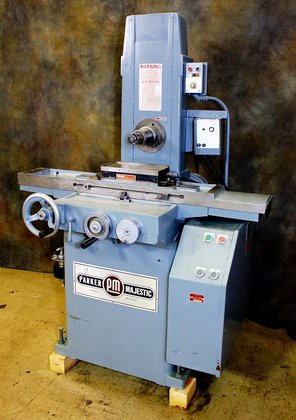

6" x 18" Parker-Majestic (Made in USA) "Super-Precision"
Hand Feed Surface Grinder
Model #: 2Z
Serial #: 5225-ZV-85 New: 1985
LONGITUDINAL TABLE TRAVEL ......................... 18"
TRANSVERSE TABLE TRAVEL ........................... 6"
INFINITELY VARIABLE SPINDLE SPEEDS ................ 1,800 TO 5,400 RPM
GRINDING WHEEL SIZES .............................. 3.5" TO 10" DIAMETER
CROSS HANDWHEEL GRAD. ............................. 0.0001"
VERTICAL HANDWHEEL GRAD. .......................... 0.001"
VERTICAL HANDWHEEL VERNIER TYPE INDICATOR ......... 0.0001"
VERTICAL TRAVEL (FROM TABLE TOP TO SPINDLE
CENTERLINE) ....................................... 20"
APPROXIMATE MACHINE WEIGHT ........................ 1,800 LBS
STANDARD MACHINE FEATURES:
ALL THREE HANDWHEELS @ OPERATOR'S HIP LEVEL
POWER ELEVATION
STANDARD HAND FEED W/TAPE DRIVE
CROSS FEED SADDLE LOCK
ONE-SHOT LUBRICATOR
EQUIPPED WITH:
6" x 18" O.S. WALKER FINE DIVISION ELECTRO-MAGNETIC CHUCK
O.S. WALKER VARIABLE HOLD NEUTROFIER CHUCK CONTROL
PARKER-MAJESTIC SUPER-PRECISION DIRECT SPINDLE DRIVE
ELECTRONIC VARIABLE SPEED DRIVE PROVIDING INFINITELY VARIABLE
SPINDLE SPEEDS FROM 1,800 TO 5,400 RPM
1.5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
** EXCELLENT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
