1978 Cincinnati-Milacron MONOSET MODEL #MT
Location:
Harrison, NJ, USA
Price:
No price
Manufacturer:
Cincinnati
Model:
MONOSET MODEL #MT

Specifications

Condition:
used
Year:
1978
Serial number:
3152A0178-0102 3152A0178-0102 3152A0178-0102
Stock number:
151759
Cross:
5-3/4"
Cross 2:
7-1/2"
Model 2:
MT S/N
Above center:
4.5"
Below center:
5"
Longitudinal:
5-3/4"
Longitudinal 2:
6"
Tailstock center:
6"
3152a0178-0102 new:
1978
Approximate weight:
1,500 LBS.
Max. turntable swivel:
235 DEG.
Above and below center:
40 DEG.
Max. grinding wheel dia:
4"
(1) workhead spindle speed:
436 RPM
(3) wheelhead spindle speeds:
4,000, 5,730, 8,000 RPM
Max. workhead collet hole dia:
1-1/4"
Min. workhead collet hole dia:
0.12"

Description

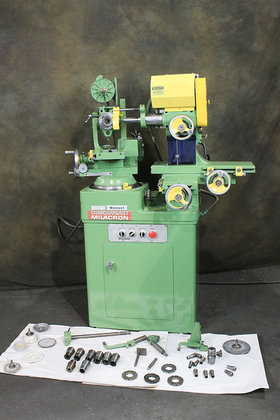

CINCINNATI MILACRON "MONOSET" TOOL & CUTTER GRINDER
MODEL: MT S/N:
3152A0178-0102 NEW: 1978
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER ............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 5-3/4"
CROSS ....................................... 5-3/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ....................... 235 DEG.
ABOVE AND BELOW CENTER ...................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 6"
CROSS ....................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER ................................ 4.5"
BELOW CENTER ................................ 5"
SPEEDS - ..
(3) WHEELHEAD SPINDLE SPEEDS ................ 4,000, 5,730, 8,000 RPM
(1) WORKHEAD SPINDLE SPEED .................. 436 RPM
APPROXIMATE WEIGHT .......................... 1,500 LBS.
MACHINE FEATURES:
HARD WAYS & SCREWS
MOTORIZED WORKHEAD
1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
TOOLING ICLUDES:
C series collets:
3/8" 1/2" 5/8" 3/4" 1.000" 1 ¼"
(4) wheel mounts
#10 index plate
Assortment of grinding wheels
Special Note:
This Machine has been Completely Taken Apart, Thoroughly Serviced, Some
New Parts Ordered, Cleaned & Repainted. This Machine is Ready for Shipment.
** EXCELLENT CONDITION & APPEARANCE **
