Top Seller
1985 15.74" Swing 29.52" Centers
Location:
Harrison, NJ
Price:
$10,000 USD
Manufacturer:
Okuma lathes
Model:
LC-20/2SC
Spindle Bore:
2.04"
Spindle Nose:
A2-6

Specifications

Condition:
used
Year:
1985
Serial number:
2814
Stock number:
151824
Spindle bore:
2.04"
Spindle nose:
A2-6
Approx weight:
14,300 LBS.
Swing over bed:
15.74"
Tailstock taper:
MT#5
Main spindle motor:
DC 15/22 kw
Rapid traverse x/z:
196/393 IPM
Spindle speed range:
65-3500 RPM
Tailstock quill stroke:
5.9"
Number of tool stations:
8 + 8
Cross slide travel, lower:
4.52"
Cross slide travel, upper:
6.49"
Longitudinal travel, lower:
23.58"
Longitudinal travel, upper:
30.3"
Max. turn dia. x max. work length:
11.81"x 29.52"
Subcategory:
Cnc machines

Description

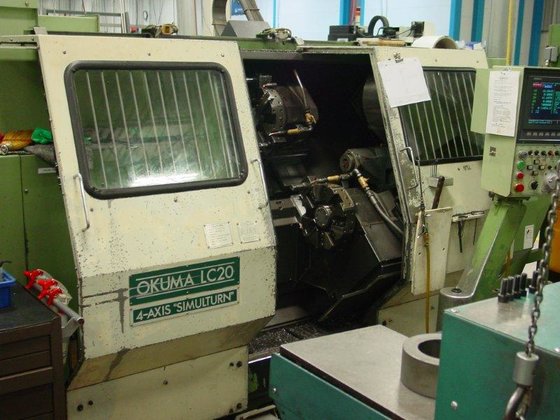

OKUMA 4-AXIS CNC TURNING CENTER
MODEL: LC-20/2SC NEW: 1985
SPECIFICATIONS:
SWING OVER BED ......................... 15.74"
MAX. TURN DIA. x MAX. WORK LENGTH ...... 11.81"x 29.52"
SPINDLE BORE ........................... 2.04"
SPINDLE NOSE ........................... A2-6
SPINDLE SPEED RANGE .................... 65-3500 RPM
LONGITUDINAL TRAVEL, UPPER ............. 30.3"
LONGITUDINAL TRAVEL, LOWER ............. 23.58"
CROSS SLIDE TRAVEL, UPPER .............. 6.49"
CROSS SLIDE TRAVEL, LOWER .............. 4.52"
RAPID TRAVERSE X/Z ..................... 196/393 IPM
NUMBER OF TOOL STATIONS ................ 8 + 8
TAILSTOCK QUILL STROKE ................. 5.9"
TAILSTOCK TAPER ........................ MT#5
MAIN SPINDLE MOTOR ..................... DC 15/22 kw
APPROX WEIGHT .......................... 14,300 LBS.
EQUIPPED WITH:
- OSP 5000L-G CONTROL
- 8" 3-JAW HYD. CHUCK
- 8 POSITION UPPER& LOWER TURRETS
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
