Top Seller
1992 8" Width 24" Length
Location:
Harrison, NJ, USA
Price:
No price
Model:
824 HYD
Weight:
3,525 LBS

Specifications

Condition:
used
Year:
1992
Serial number:
30407
Stock number:
151863
Work capacity:
8" X 24"
Approximate weight:
3,525 LBS
Grinding wheel size:
10" X 1" X 3"
Handwheel graduation:
0.0001"
Maximum cross travel:
9.25"
Maximum longitudinal travel:
28"
Work height under 10" wheel:
12- 3/8"
Automatic cross feed increment:
0.010" TO .500"
Cross feed per rev. of handwheel:
0.125"
Inf. variable power table speeds:
10' TO 125' FPM
Approx. floor space for operation:
101" x 99" x 71"H

Description

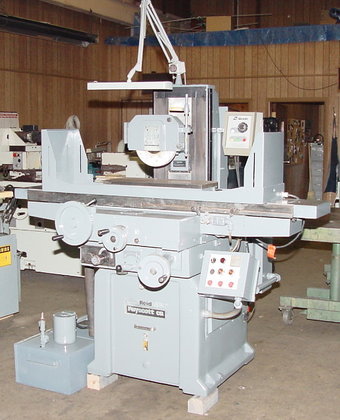

8" X 24" REID (MADE IN USA) HYDRAULIC SURFACE GRINDER
MODEL: 824-HYD S/N: 30407 NEW: 1992
WORK CAPACITY ................................... 8" X 24"
WORK HEIGHT UNDER 10" WHEEL ....................... 12- 3/8"
MAXIMUM LONGITUDINAL TRAVEL ....................... 28"
MAXIMUM CROSS TRAVEL .............................. 9.25"
TABLE TRAVEL (LONG.) PER REV. OF HANDWHEEL ........ 2- 1/4"
HANDWHEEL GRADUATION .............................. 0.0001"
CROSS FEED PER REV. OF HANDWHEEL .................. 0.125"
VERTICAL TRAVEL PER REV. OF HANDWHEEL ............. 0.050"
INF. VARIABLE POWER TABLE SPEEDS .................. 10' TO 125' FPM
AUTOMATIC CROSS FEED INCREMENT .................... 0.010" TO .500"
GRINDING WHEEL SIZE ............................... 10" X 1" X 3"
APPROXIMATE WEIGHT ................................ 3,525 LBS
APPROX. FLOOR SPACE FOR OPERATION ................. 101" x 99" x 71"H
MACHINE FEATURES:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING
SELF-CONTAINED HYDRAULIC SYSTEM
HEAVY, RIBBED CAST IRON CONSTRUCTION
LOW PRESSURE, HYDRAULIC POWER UNIT, LOCATED IN SLIDE-OUT DRAW IN MACHINE BASE
AUTOMATIC LUBRICATION SYSTEM
ELECTRICAL CABINET MOUNTED ON THE BACK OF THE MACHINE
3 HP "REID" 3/60/230-460 VOLT DIRECT DRIVE SUPER-PRECISION SPINDLE
EQUIPPED WITH:
8" X 24" O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK
O.S. WALKER "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL
10" DIAMETER GRINDING WHEEL
OVER-THE-WHEEL WHEEL DRESSER w/MICROMETER ADJUSTMENT
COOLANT SYSTEM w/TANK, PUMP, SPLASH GUARDS, ETC.
WORK LIGHT
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
SPECIAL NOTE:
THIS MACHINE WAS MADE IN THE USA. THE COST NEW WAS OVER $35,000.
THIS IS A "TOP NOTCH" HIGH PRECISION SURACE GRINDER!
** EXCELLENT CONDITION& APPEARANCE - CLEANED, PAINTED, CYCLED**
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
