Top Seller
1975 5" Swing 12" Centers
Location:
Harrison, NJ
Weight:
1500 LBS

Specifications

Condition:
used
Year:
1975
Serial number:
S119164
Stock number:
151859
Total travel:
3"
Workhead motor:
1/2 H.P.
Wheelhead motor:
3 H.P.
Swing over table:
5"
Wheel speeds (2):
1830 & 1988 RPM
Maximum table travel:
13-3/4"
Maximum collet capacity:
3/4"
Capacity between centers:
12"
Table swivels either way:
7 DEGREES
Grinding wheel (recessed):
12" X 1-1/2" X 5"
Maximum grinding diameter:
3"
Approximate machine weight:
1500 LBS
Workspeeds, steplessly variable:
50 TO 900 RPM
Capacity through standard draw tube:
3/4"

Description

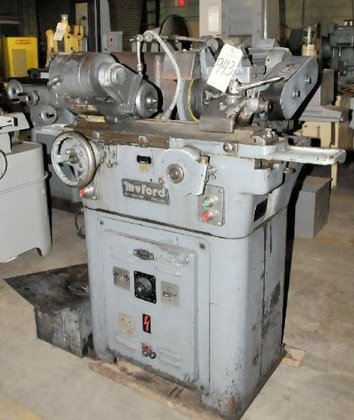

5" X 12" MYFORD "PRECISION" PLAIN HANDFEED
PLAIN CYLINDRICAL
MODEL: MG12 S/N: S119164 NEW: 1975
MAXIMUM GRINDING DIAMETER ............................ 3"
SWING OVER TABLE ..................................... 5"
MAXIMUM TABLE TRAVEL ............................ 13-3/4"
CAPACITY BETWEEN CENTERS ............................ 12"
TABLE SWIVELS EITHER WAY ...................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OF HANDWHEEL ... 2.04"& 0.51"
WHEELHEAD:
TOTAL TRAVEL ......................................... 3"
FINE FEED ADJUSTER (NUMBERED DIVISIONS) ......... 0.0001"
WHEEL SPEEDS (2) ........................ 1830 & 1988 RPM
GRINDING WHEEL (RECESSED) ............. 12" X 1-1/2" X 5"
MINIMUM WHEEL DIAMETER FOR ZERO WORK DIAMETER ... 10-1/8"
WHEELHEAD MOTOR .................................. 3 H.P.
WORKHEAD:
WORKSPEEDS, STEPLESSLY VARIABLE ........... 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAW TUBE ................ 3/4"
MAXIMUM COLLET CAPACITY ............................ 3/4"
WORKHEAD MOTOR ................................. 1/2 H.P.
APPROXIMATE MACHINE WEIGHT ..................... 1500 LBS
EQUIPPED WITH:
HAND FEEDS
12" GRINDING WHEEL
DUAL LIVE/DEAD WORKHEAD
4C COLLET DRAW BAR
4C COLLET WITH A CENTER
TABLE MOUNTED DRESSER
COOLANT SYSTEM
3/60/220-440 VOLT ELECTRICS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERB CONDITION& APPEARANCE **
