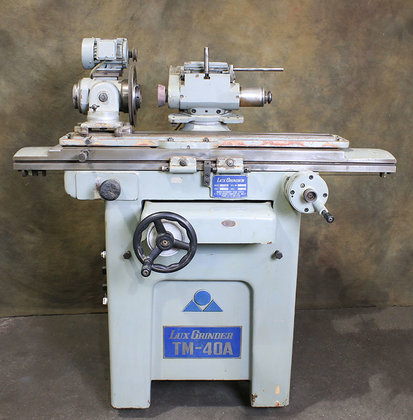

1981 Lux TM40A TOOL &
Location:
Harrison, NJ
Manufacturer:
Lux
Model:
TM40A
Weight:
1,980 LBS.

Specifications

Condition:
used
Year:
1981
Serial number:
10288
Stock number:
151888
Table size:
5- 5/16" X 37- 1/2"
Table taper:
+/- 10 DEGREES
Table swivel:
180 DEG.
Spindle speeds (3):
2,600, 3,700 & 6,200 RPM
Required floor space:
61"L-R x 68.5"D x 60"H
Cross movement of table:
10"
Longitudinal table travel:
16"
Swing over table diameter:
10"
Approximate machine weight:
1,980 LBS.

Description

"LUX" (VERY SIMILAR TO A MAKINO #C-40)
(MADE IN TAIWAN) UNIVERSAL TOOL & CUTTER
GRINDER WITH MANY ACCESSORIES
MODEL: KM-40S S/N: 10288 NEW: 1981
CAPACITY:
SWING OVER TABLE DIAMETER ....................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ............ 14"
RANGE:
TABLE SIZE ........................... 5- 5/16" X 37- 1/2"
LONGITUDINAL TABLE TRAVEL ....................... 16"
CROSS MOVEMENT OF TABLE ......................... 10"
TABLE SWIVEL ............................... 180 DEG.
TABLE TAPER ............................ +/- 10 DEGREES
TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 60 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ..... 10"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ....... 12"
SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.
SPINDLE SPEEDS (3) ................. 2,600, 3,700 & 6,200 RPM
APPROXIMATE MACHINE WEIGHT .................. 1,980 LBS.
REQUIRED FLOOR SPACE ................ 61"L-R x 68.5"D x 60"H
MACHINE FEATURES:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR
ACCESSORIES WITH THIS MACHINE INCLUDE:
MOTORIZED WORKHEAD, SWIVELS IN TWO PLANES
NON-MOTORIZED WORKHEAD
INDEX PLATES FOR THE WORKHEADS
SET OF TAILSTOCKS
81 PAGE MANUAL, VERY INFORMATIVE, VERY THOROUGH
ITEMS THAT BE GROUND ON THIS MACHINE:
END MILLS
SHELL END MILLS
FACE MILL
KEYWAY OR SLOTTING CUTTER
SIDE MILL CUTTER
STAGGERED TOOTH CUTTER
ANGULAR CUTTER
LONG END MILL
METAL SLITTING SAW
LARGE METAL SAW, UP TO 48" DIAMETER
HELICAL TOOTH CUTTER
TAP
REAMER, CHAMFER
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCEPTIONAL CONDITION (ORIGINAL PAINT) & APPEARANCE **
