Top Seller
1995 21" Swing 16" Centers
Location:
Harrison, NJ
Price:
$15,000 USD
Manufacturer:
Kia
Model:
Kia Turn 21
Spindle Nose:
A2-6

Specifications

Condition:
used
Year:
1995
Serial number:
21232
Stock number:
151938
New:
1995
Bar capacity:
2"
Spindle nose:
A2-6
Spindle motor:
15/20 HP
Tailstock dia:
2.2"
X-axis travel:
8.27"
Z-axis travel:
16.93"
Approx. weight:
9,020 LBS.
Spindle speeds:
500-4000 RPM
Swing over bed:
21.65"
Tailstock taper:
MT#4
Turret stations:
12
Tailstock travel:
15.75"
Max. machining dia:
13.78"
Max. machining length:
16.14"
Subcategory:
Cnc machines

Description

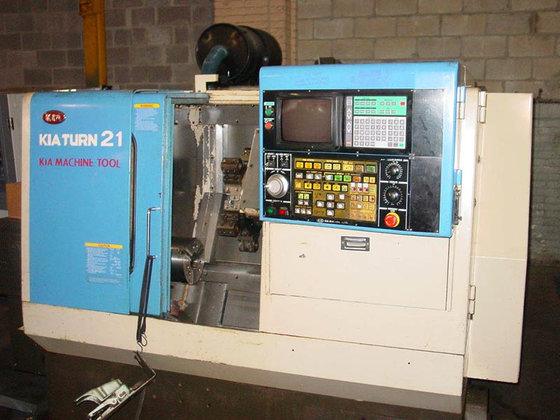

KIA KIATURN 21 2-AXIS CNC TURNING CENTER
NEW: 1995
SPECIFICATIONS:
SWING OVER BED .............. 21.65"
MAX. MACHINING DIA. ......... 13.78"
MAX. MACHINING LENGTH ....... 16.14"
BAR CAPACITY ................ 2"
SPINDLE NOSE ................ A2-6
SPINDLE SPEEDS .............. 500-4000 RPM
SPINDLE MOTOR ............... 15/20 HP
X-AXIS TRAVEL ............... 8.27"
Z-AXIS TRAVEL ............... 16.93"
TURRET STATIONS ............. 12
TAILSTOCK TAPER ............. MT#4
TAILSTOCK DIA. .............. 2.2"
TAILSTOCK TRAVEL ............ 15.75"
APPROX. WEIGHT .............. 9,020 LBS.
EQUIPPED WITH:
- YASNAC LX-3 CNC CONTROL
- 8" 3-JAW HYD. CHUCK
- TOOLSETTER
- 12 POSITION TURRET
- TAILSTOCK
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
