1965 2.5" Spindle 39" X
Location:
Harrison, NJ
Price:
$24,500 USD
Model:
WH63
Spindle Diameter:
2-1/2"

Specifications

Condition:
used
Year:
1965
Serial number:
1710
Stock number:
152400
Condition 2:
**** EXCELLENT ****
Spindle taper:
#4MT
Spindle travel:
22"
Spindle diameter:
2-1/2"
Rotary table size:
35" x 31"
Approximate weight:
17,000 LBS.
Table cross travel:
39"
Floor space required:
160"L x 85"W x 90H
Maximum workpiece weight:
4,500 LBS.
Spindle speed range (21):
18 TO 1800 RPM
Table longitudinal travel:
39"
Vertical travel of headstock:
28"

Description

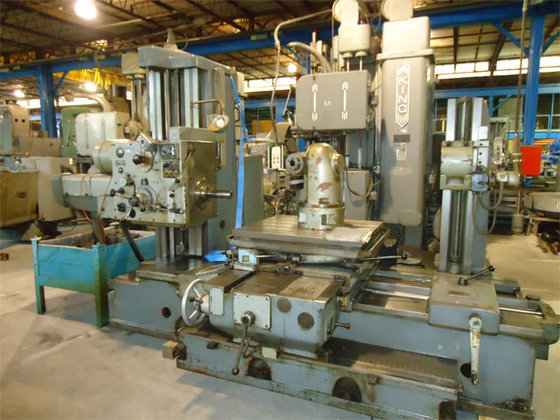

2 ½" TOS TABLE TYPE HORIZONTAL BORING MILL
MODEL: WH63, SN: 1710, NEW 1965
SPECIFICATIONS:
SPINDLE DIAMETER ...................... 2-1/2"
SPINDLE TAPER ......................... #4MT
SPINDLE TRAVEL ........................ 22"
VERTICAL TRAVEL OF HEADSTOCK .......... 28"
TABLE CROSS TRAVEL .................... 39"
TABLE LONGITUDINAL TRAVEL ............. 39"
SPINDLE SPEED RANGE (21) .............. 18 TO 1800 RPM
ROTARY TABLE SIZE ..................... 35" x 31"
MAXIMUM WORKPIECE WEIGHT .............. 4,500 LBS.
FLOOR SPACE REQUIRED .................. 160"L x 85"W x 90H
APPROXIMATE WEIGHT .................... 17,000 LBS.
EQUIPPED WITH:
- FACING HEAD
- RIGHT ANGLE HEAD
- TAILSTOCK
- RAPID TRAVERSE
- POWER ROTARY TABLE
- 8 HORSE POWER MAIN MOTOR
CONDITION: **** EXCELLENT ****
