Top Seller
1995 15.75" Swing 19.69" Centers
Location:
Harrison, NJ
Price:
$16,500 USD
Manufacturer:
Okuma lathes
Spindle Bore:
2.2"
Spindle Nose:
ASA A2-6

Specifications

Condition:
used
Year:
1995
Serial number:
D-225
Stock number:
152256
Turret:
12 POSITIONS
Drawtube id:
1.77"
Spindle bore:
2.2"
Spindle nose:
ASA A2-6
Spindle motor:
10 HP
Machine weight:
9,670 LBS
Swing over bed:
15.75"
Tailstock taper:
MT#5
Maximum work length:
15"
Rapid traverse rate:
472 IPM
Tailstock quill dia:
3.54"
Floor space required:
73" X 108"
Spindle speeds range:
75 TO 4,200 RPM
Tailstock quill stroke:
4.72"
Maximum turning diameter:
9.84"
X-axis travel (cross slide):
6.89"
Z-axis travel (longitudinal):
20.47"
Cutting feed rate (both axes):
0.0001 TO 40 IPR
Subcategory:
Cnc machines

Description

OKUMA CADET LNC-8 CNC TURNING CENTER
1995 MACHINE
EQUIPPED WITH:

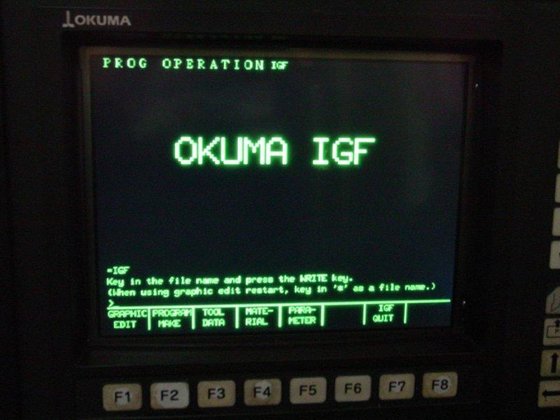

OSP-5020L CNC w/IGF
10" HYDRAULIC CHUCK
TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
CATALOGUE SPECIFICATIONS:
SWING OVER BED ......................... 15.75"
MAXIMUM TURNING DIAMETER ............... 9.84"
MAXIMUM WORK LENGTH .................... 15"
SPINDLE SPEEDS RANGE ................... 75 TO 4,200 RPM
SPINDLE MOTOR .......................... 10 HP
SPINDLE BORE ........................... 2.2"
DRAWTUBE ID ............................ 1.77"
SPINDLE NOSE ........................... ASA A2-6
TURRET ................................. 12 POSITIONS
X-AXIS TRAVEL (CROSS SLIDE) ............ 6.89"
Z-AXIS TRAVEL (LONGITUDINAL) ........... 20.47"
CUTTING FEED RATE (BOTH AXES) .......... 0.0001 TO 40 IPR
RAPID TRAVERSE RATE .................... 472 IPM
TAILSTOCK QUILL DIA. ................... 3.54"
TAILSTOCK TAPER ........................ MT#5
TAILSTOCK QUILL STROKE ................. 4.72"
FLOOR SPACE REQUIRED ................... 73" X 108"
MACHINE WEIGHT ......................... 9,670 LBS
