1966 4' Arm Lth 11"
Location:
Harrison, NJ
Price:
$8,500 USD
Manufacturer:
Carlton
Model:
Carlton 1A
Weight:
6,500 LBS.

Specifications

Condition:
used
Year:
1966
Serial number:
1A3915
Stock number:
152450
Arm length:
4'
Condition 2:
**** EXCELLENT ****
Height of base:
8"
Column diameter:
11"
Spindle diameter:
2-1/2"
Taper in spindle:
#4 MORSE
Spindle feeds (6):
004 TO .025 IPR
Approximate weight:
6,500 LBS.
Spindle speeds (12):
60 TO 1,500 RPM
Working surface of base:
36" x 54"
Spindle traverse in head:
12"
Face of column to spindle:
48" MAX / 9" MIN
Min/max distance, spindle to base:
14" / 53"
Horizontal traverse of head on arm:
39"
Vertical traverse of arm on column:
28-1/2"
Subcategory:
Radial arm drills

Description

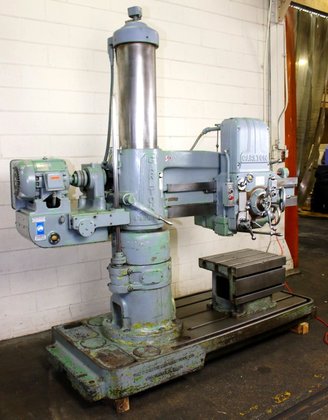

4' X 11" CARLTON RADIAL DRILL
MODEL: 1A, S/N: 3915, NEW: 1966
SPECIFICATIONS:
COLUMN DIAMETER .......................... 11"
ARM LENGTH ............................... 4'
FACE OF COLUMN TO SPINDLE ................ 48" MAX / 9" MIN
TAPER IN SPINDLE ......................... #4 MORSE
SPINDLE DIAMETER ......................... 2-1/2"
SPINDLE TRAVERSE IN HEAD ................. 12"
HORIZONTAL TRAVERSE OF HEAD ON ARM ....... 39"
VERTICAL TRAVERSE OF ARM ON COLUMN ....... 28-1/2"
MIN/MAX DISTANCE, SPINDLE TO BASE ........ 14" / 53"
HEIGHT OF BASE ........................... 8"
WORKING SURFACE OF BASE .................. 36" x 54"
SPINDLE SPEEDS (12) ...................... 60 TO 1,500 RPM
SPINDLE FEEDS (6) ........................ .004 TO .025 IPR
APPROXIMATE WEIGHT ....................... 6,500 LBS.
EQUIPPED WITH:
T-SLOTTED BASE
T-SLOTTED BOX TABLE
MOTORIZED ELEVATION OF ARM ON COLUMN
ELECTRICALLY ACTUATED COLUMN CLAMPING
5 H.P. 3/60/220-440V SPINDLE DRIVE MOTOR & ELEC CONTROLS
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
