22" Swing 80" Centers Satesa
Location:
Harrison, NJ
Price:
$7,500 USD
Manufacturer:
Satesa
Model:
STB-RE
Distance between Centers:
80"
Spindle Nose:
L1

Specifications

Condition:
used
Serial number:
738
Stock number:
152487
Age info:
1970's
Condition 2:
***** VERY GOOD *****
Spindle nose:
L1
Width of bed:
16"
Approx weight:
5,000 LBS
Cross feed range:
0010" - .096" IPR
Hole thru spindle:
2"
Approx floor space:
134"L x 42"W x 53"H
Swing over bedways:
22"
Metric threading range:
02 - 11 mm
Swing over cross slide:
14"
English threading range:
2 - 55 TPI
Longitudinal feed range:
0015" - .142" IPR
Swing in removeable gap:
32"
Tailstock spindle taper:
#4MT
Distance between centers:
80"
Spindle speed range (18):
32 - 1200 RPM
Tailstock spindle travel:
8"
Subcategory:
Engine lathes
Subcategory 2:
Toolroom machines

Description

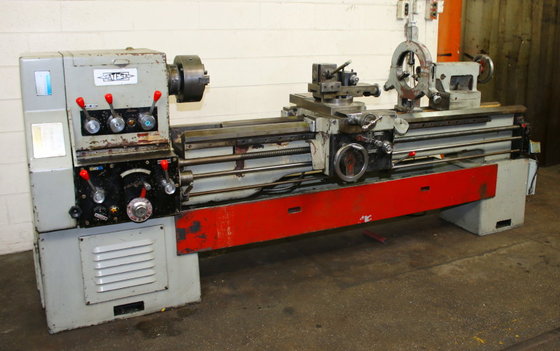

22"/32" x 80" SATESA GAP BED ENGINE LATHE
MODEL: STB-RE, S/N: 738, NEW: 1970's
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 22"
SWING IN REMOVEABLE GAP .............. 32"
SWING OVER CROSS SLIDE ............... 14"
HOLE THRU SPINDLE .................... 2"
DISTANCE BETWEEN CENTERS ............. 80"
WIDTH OF BED ......................... 16"
SPINDLE NOSE ......................... L1
SPINDLE SPEED RANGE (18) ............. 32 - 1200 RPM
ENGLISH THREADING RANGE .............. 2 - 55 TPI
METRIC THREADING RANGE .............. .02 - 11 mm
LONGITUDINAL FEED RANGE ............. .0015" - .142" IPR
CROSS FEED RANGE .................... .0010" - .096" IPR
TAILSTOCK SPINDLE TAPER ............. #4MT
TAILSTOCK SPINDLE TRAVEL ............ 8"
APPROX FLOOR SPACE .................. 134"L x 42"W x 53"H
APPROX WEIGHT ....................... 5,000 LBS
EQUIPPED WITH:
9-3/4" 3-JAW CHUCK
STEADY REST
QUICK CHANGE TOOLPOST
LIVE CENTER
COOLANT SYSTEM
HARDENED BED WAYS
7.5 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR 220 VOLT OPERATION
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: ***** VERY GOOD *****
