Top Seller
1998 9.8" Y Axis 13.8"
Location:
Harrison, NJ
Manufacturer:
Sodick edm machines
Model:
A325

Specifications

Condition:
used
Year:
1998
Serial number:
T-0070
Stock number:
151909
Wire diameter:
.............................. 0.004" TO 0.012"
Y-axis travel:
.….................................................... 9.8"
Z-axis travel:
8.6"
Rapid feedrate:
..........................................79" IPM
Standard taper:
+/- 30 DEG. @ 1.18" THICK
Tank dimensions:
31.5 X 80.4" X 65"H
Work table size:
23.6"W X 15.7"D
Approx. dimensions:
66" X 87" X 84"H
Max. wire-feed rate:
...................0.8" TO 9.8"/SEC
Max. workpiece weight:
........................... 990 LBS.
Approx. machine weight:
6,600 LBS.
Auxillary table travel:
3.1" X 3.1"
Dielectric tank capacity:
158 GALS.
Max. height of workpiece:
8.6"
Total floor space required:
103" L-R x 87"F-B x 84"H
Work tank inner dimensions:
35.2"W X 25.5"D
Approx. dims. of filtration unit:
34"L-R x 78"F-B x 66"H
Subcategory:
Edm's
Subcategory 2:
Wire edm machines

Description

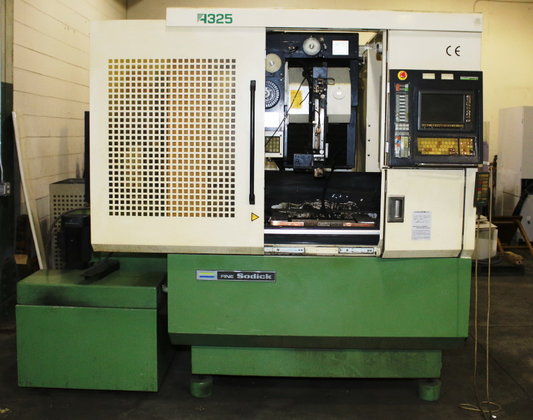

SODICK CNC WIRE EDM MACHINE
WITH AWT & SUBMERSIBLE MACHINING
MODEL: A325 S/N: T0070 MFGR’D: 05/1998
X-AXIS TRAVEL ....................….……..….…............... 13.7"
Y-AXIS TRAVEL:.….................................................... 9.8"
Z-AXIS TRAVEL ......................................................... 8.6"
AUXILLARY TABLE TRAVEL ........................... 3.1" X 3.1"
STANDARD TAPER ............. +/- 30 DEG. @ 1.18" THICK
MAX. HEIGHT OF WORKPIECE ................................ 8.6"
MAX. WORKPIECE WEIGHT: ........................... 990 LBS.
WORK TABLE SIZE ............................. 23.6"W X 15.7"D
WORK TANK INNER DIMENSIONS ...... 35.2"W X 25.5"D
RAPID FEEDRATE :..........................................79" IPM
WIRE DIAMETER: .............................. 0.004" TO 0.012"
MAX. WIRE-FEED RATE: ...................0.8" TO 9.8"/SEC
DIELECTRIC TANK CAPACITY .................... 158 GALS.
TANK DIMENSIONS ...................... 31.5 X 80.4" X 65"H
APPROX. MACHINE WEIGHT ....................... 6,600 LBS.
APPROX. DIMENSIONS ............................... 66" X 87" X 84"H
APPROX. DIMS. OF FILTRATION UNIT ...... 34"L-R x 78"F-B x 66"H
TOTAL FLOOR SPACE REQUIRED .......... 103" L-R x 87"F-B x 84"H
EQUIPPED WITH:
Sodick “MARK 25” CNC CONTROL:
COLOR CRT DISPLAY W/3-DIMENSIONAL GRAPHICS
CONVERSATIONAL APT PROGRAMMING
ADVANCED CORNER CONTROL (ACC)
REMOTE CONTROL UNIT
RS-232& 3.5 FLOPPY DRIVE
DIGITAL AC SERVOS W/.000004" RESOLUTION
SUBMERSED CUTTING
AUTOMATIC WIRE THREADING (AWT)
EF4 FINE FINISH & PART STRAIGHTNESS CIRCUIT ...
GENERATING FINE FINISHES OF LESS THAN 9 RMS.
PREVENTS RUST & REDUCES WORK PIECE BOW.
CHILLER
WIRED FOR 3/60/200-220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ SHOP **
*** EXCELLENT CONDITION & APPEARANCE ***
