1990 12" Width 24" Length
Location:
Harrison, NJ
Manufacturer:
Elb
Model:
Perfekt 6 ND PERFEKT 6ND PERFEKT 6ND
Weight:
7,800 LBS.

Specifications

Condition:
used
Year:
1990
Serial number:
21.259 0690
Stock number:
152326
Handwheel rev:
0.04"
Sparkout time:
3 SEC. TO 3 MINUTES
Coolant system:
24" x 20" x 36"H
Spindle speeds:
1,500 / 3,000 RPM
Control cabinet:
25" x 36" x 68"
Hydraulic system:
24" x 20" x 36"H
Max. wheel width:
3"
Vertical feed rate:
7" IPM
Micro handwheel rev:
0.01"
Auto cross feed rate:
0.04" TO 1.6"
Maximum table travel:
28"
Hydraulic table speed:
1 TO 30 METERS PER MINUTE
Rapid cross feed rate:
47" IPM
Approx. machine weight:
7,800 LBS.
Standard grinding wheel:
12"D X 2"W X 3"B
Roughing downfeed amount:
0.0001" TO .001"
Approx. machine tool dims:
96" x 74" x 96"H
Finishing vertical amount:
0.00001" TO 0.00012"
Maximum cross feed travel:
14"
Maximum height under a 12" wheel:
16"
Vertical feed rate, minimum amount:
0.00004"

Description

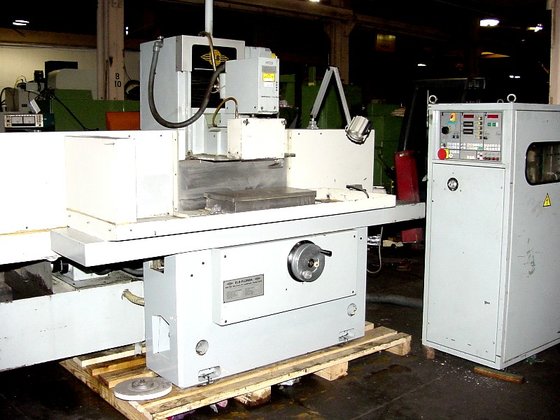

12" X 24" ELB "PERFEKT" SERIES HIGH-PRECISION
SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWN FEED
PROGRAMMABLE OVERHEAD WHEEL DRESSER W/AUTO COMPENSATION
MODEL: PERFEKT 6ND S/N: 21.259 0690 NEW: 1990
WIDTH X LENGTH GROUND (NOMINAL CAP.) ......... 12" X 24"
MAXIMUM TABLE TRAVEL ......................... 28"
MAXIMUM CROSS FEED TRAVEL .................... 14"
MAXIMUM HEIGHT UNDER A 12" WHEEL ............. 16"
STANDARD GRINDING WHEEL ................. 12"D X 2"W X 3"B
MAX. WHEEL WIDTH ............................. 3"
SPINDLE SPEEDS ........................... 1,500 / 3,000 RPM
HYDRAULIC TABLE SPEED ..................... 1 TO 30 METERS PER MINUTE
AUTO CROSS FEED RATE ...................... 0.04" TO 1.6"
RAPID CROSS FEED RATE ..................... 47" IPM
MICRO HANDWHEEL REV. ...................... 0.01"
HANDWHEEL REV. ............................ 0.04"
VERTICAL FEED RATE, MINIMUM AMOUNT ........ 0.00004"
ROUGHING DOWNFEED AMOUNT .................. 0.0001" TO .001"
FINISHING VERTICAL AMOUNT ................. 0.00001" TO 0.00012"
SPARKOUT TIME ............................. 3 SEC. TO 3 MINUTES
VERTICAL FEED RATE ........................ 7" IPM
APPROX. MACHINE TOOL DIMS. ........... 96" x 74" x 96"H
HYDRAULIC SYSTEM ..................... 24" x 20" x 36"H
COOLANT SYSTEM ....................... 24" x 20" x 36"H
CONTROL CABINET ...................... 25" x 36" x 68"
APPROX. MACHINE WEIGHT ................ 7,800 LBS.
EQUIPPED WITH:
FULLY AUTOMATIC OPERATION FOR X, Y & Z AXES
ULTRA FINE PROGRAMMABLE DOWNFEED INCREMENTS, .00001" .... YES, THAT IS RIGHT!
HYDRAULIC TABLE TRAVERSE
DIGITAL CONTROL FOR VERTICAL & CROSS FEED MOVEMENTS
AUTO WHEEL RETRACT AT THE END OF THE GRIND CYCLE
MICRO-GRANTE MACHINE BASE
GUIDEWAYS ARE PLASTIC COATED
COLUMN MOVES FOR CROSSFEED
COMPLETE COOLANT SYSTEM FOR "WET" GRINDING
POWER WHEEL DRESSER WITH AUTOMATIC COMPENSATION
12" X 24" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL BUILT INTO CABINET CONTROL
12" x 2" x 3" STANDARD WHEEL, WITH A MAX. WIDTH OF 3"
5.7 H.P. SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
MACHINE WILL BE SERVICED & PREPARED FOR DEMONSTRATION
BY MR. SEMYON VALSHTEIN OF ELB SERVICE,
CELL PHONE (732) 841-4630.
WORK IS BEING DONE RIGHT NOW, 07/22/2014.
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
LINK TO VIDEO OF MACHINE UNDER POWER:

** EXCEPTIONAL CONDITION& APPEARANCE
- UNUSUAL OPPORTUNITY TO BUY THE WORLD'S
FINEST SURFACE GRINDERS **
** MACHINE IS MADE IN GERMANY **
