Top Seller
1988 14" Swing 59" Centers
Location:
Harrison, NJ
Manufacturer:
SMTW
Model:
M332B
Weight:
9,460 LBS.

Specifications

Condition:
used
Year:
1988
Serial number:
8506
Stock number:
151944
Approx. dims:
165" L-R, 72" DEEP, 66" HIGH
Traverse speed:
2" TO 160" IPM
Workhead taper:
#4 MT OR #5MT
Tailstock taper:
#4 MT
Auto plunge infeed:
YES
Plunge infeed speed:
2" TO 60" IPM
Approx. machine weight:
9,460 LBS.
Distance between centers:
59"
Max. travel of leadscrew:
9"
Maximum swing over table:
14.2"
Tailstock spindle travel:
1.2"
Grinding wheel spindle speed:
1,130 RPM
Standard grinding wheel size:
24" O.D. X 3"W
Table swivels, clockwise/ccw:
3 DEG./4 DEG.
Travel per div. of handwheel:
0.0002"
Travel per rev. of handwheel:
0.04"
Max. workload between centers:
400 LBS.
Minimum auto infeed increment:
0.0002"
Rapid hydraulic infeed stroke:
2"

Description

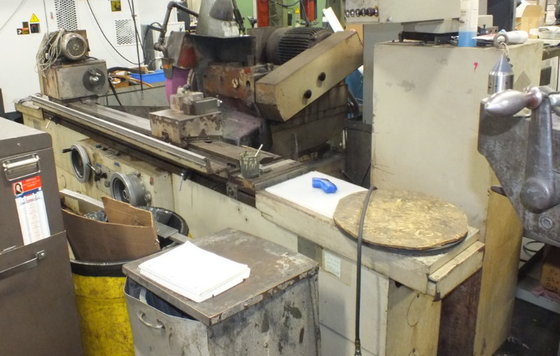

14.2" X 59" ECOTECH (SMTW) CYLINDRICAL GRINDER
MODEL: MB1332BX1500 S/N: 8506 NEW: 1988
MAXIMUM SWING OVER TABLE .............. 14.2"
DISTANCE BETWEEN CENTERS ............... 59"
MAX. WORKLOAD BETWEEN CENTERS .......... 400 LBS.
WORK CARRIAGE:
TRAVERSE SPEED......................... 2" TO 160" IPM
TABLE SWIVELS, CLOCKWISE/CCW .......... 3 DEG./4 DEG.
WHEELHEAD& WHEEL FEED:
STANDARD GRINDING WHEEL SIZE........... 24" O.D. X 3"W
X 12" HOLE
GRINDING WHEEL SPINDLE SPEED .......... 1,130 RPM
AUTOMATIC INFEED PER TABLE REVERSAL ... YES
MINIMUM AUTO INFEED INCREMENT ......... 0.0002"
AUTO PLUNGE INFEED .................... YES
PLUNGE INFEED SPEED ................... 2" TO 60" IPM
RAPID HYDRAULIC INFEED STROKE.......... 2"
MAX. TRAVEL OF LEADSCREW .............. 9"
TRAVEL PER REV. OF HANDWHEEL .......... 0.04"
TRAVEL PER DIV. OF HANDWHEEL .......... 0.0002"
MOTORIZED WORKHEAD AND TAILSTOCK:
WORKHEAD SPINDLE SPEEDS (6 SPEEDS) .... 32 TO 312 RPM
WORKHEAD TAPER......................... #4 MT OR #5MT
TAILSTOCK TAPER........................ #4 MT
TAILSTOCK SPINDLE TRAVEL .............. 1.2"
APPROX. MACHINE WEIGHT ............... 9,460 LBS.
APPROX. DIMS. ................. 165" L-R, 72" DEEP, 66" HIGH
MACHINE FEATURES:
HYDRO-DYNAMIC WHEELHEAD SPINDLE BEARINGS
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED @ TABLE REVERSAL
AUTO PLUNGE INFEED
HYDRAULIC RAPID WHEELHEAD ADVANCE/RETRACTION
WORKHEAD WITH CENTER
TAILSTOCK
EXTERNAL COOLANT TANK & PUMP
15 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT APPEARANCE & CONDITION **
