Top Seller
2003 20" X Axis 12.5"
Location:
Harrison, NJ
Price:
$37,500 USD
Model:
TCV-51A
Spindle Taper:
CAT 40

Specifications

Condition:
used
Year:
2003
Serial number:
304002
Stock number:
152839
Main motor:
7.5HP/10HP (15min)/15HP (10min)
Condition 2:
**** EXCELLENT ****
Pallet size:
23.75" x 15.7"
Cutting feed:
394 IPM
Maximum speed:
10,000 RPM
Spindle taper:
CAT 40
Machine weight:
12,320 LBS.
Rapid traverse:
1890 IPM (X,Y,Z)
X - axis travel:
20.0"
Y - axis travel:
12.5"
Z - axis travel:
11.8"
Max. tool weight:
13.2 LBS.
Tool change time:
2.5SECS. T-T
Number of pallets:
2
Max. tool diameter:
3.0"/4.0" ADJ. EMPTY
Pallet change time:
3.5 secs.
Pallet load capacity:
374 LBS.
Spindle nose to table:
8.6" - 20.5"
Magazine tool capacity:
30 ATC
Spindle center to z way cover:
12.9"
Subcategory:
Cnc machines

Description

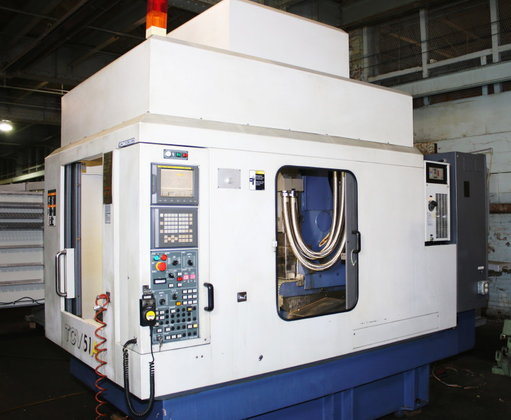

YCM-SUPERMAX VERTICAL MACHINING CENTER w/APC
MODEL: TCV-51A, S/N: 304002, MFG: 2003
SPECIFICATIONS:
PALLET SIZE: 23.75" x 15.7"
NUMBER OF PALLETS: 2
PALLET LOAD CAPACITY: 374 LBS.
X - AXIS TRAVEL: 20.0"
Y - AXIS TRAVEL: 12.5"
Z - AXIS TRAVEL: 11.8"
MAXIMUM SPEED: 10,000 RPM
MAIN MOTOR: 7.5HP/10HP (15min)/15HP (10min)
SPINDLE NOSE TO TABLE: 8.6" - 20.5"
SPINDLE CENTER TO Z WAY COVER: 12.9"
PALLET CHANGE TIME: 3.5 secs.
MAGAZINE TOOL CAPACITY: 30 ATC
SPINDLE TAPER: CAT 40
MAX. TOOL WEIGHT: 13.2 LBS.
MAX. TOOL DIAMETER: 3.0"/4.0" ADJ. EMPTY
TOOL CHANGE TIME: 2.5SECS. T-T
RAPID TRAVERSE: 1890 IPM (X,Y,Z)
CUTTING FEED: 394 IPM
MACHINE WEIGHT: 12,320 LBS.
FLOOR SPACE; 83" X 132" X 101" (H)
EQUIPPED WITH:
FANUC MXP-100i CONTROL
COOLANT THRU SPINDLE
RIGID TAPPING
180 PALLET CHANGER
ALL AVAILABLE MANUALS
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
