Top Seller
1975 14" Swing 36" Centers
Location:
Harrison, NJ
Model:
Landis 2R
Weight:
7,200 LBS.

Specifications

Condition:
used
Year:
1975
Serial number:
85667
Stock number:
152704
Fast:
1.000"
Lower:
60 DEG. CW
Angle):
16 DEGREES
Grinding:
14" DIA. X 2"W
Of handwheel:
0.100"
Swivel range:
UPPER........................ 180 DEGREES
Approx. weight:
7,200 LBS.
Traverse speed:
2 TO 240 I.P.M.
Workhead taper:
#10 JARNO
Tailstock taper:
#6 JARNO
To work centerline:
15-1/2"/1-1/2"
Workhead spindle nose:
5A-2
Workhead swivel range:
120 DEGREES
Automatic plunge infeed:
YES
Distance between centers:
36"
Maximum swing over table:
14-31/32"
Infinitely variable workhead:
30-150 RPM AND
Zero diameter work on centers:
9"
Dia. of hole, workhead spindle:
1"
Rapid (power) wheelhead stroke:
1- 1/2"
Traverse per turn of handwheel:
SLOW....... 100"
(2) grinding wheel spindle speeds:
1720-2185 R.P.M.
On dia., hydraulic infeed machine:
0.0002" TO .004"

Description

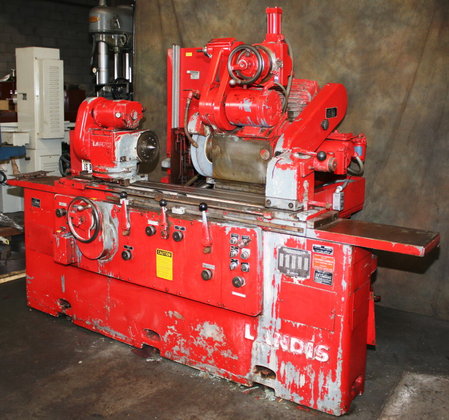

14" X 36" LANDIS UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
MODEL: 2R S/N: 856-67 NEW: 1975
MAXIMUM SWING OVER TABLE................... 14-31/32"
DISTANCE BETWEEN CENTERS................... 36"
MINIMUM DIAMETER WHEEL TO GRIND TO
ZERO DIAMETER WORK ON CENTERS.............. 9"
TABLE:
SWIVEL TABLE GRADUATED (IN. PER FOOT)...... 3-1/2"
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE)..................................... 16 DEGREES
WORK CARRIAGE:
TRAVERSE SPEED............................. 2 TO 240 I.P.M.
TRAVERSE PER TURN OF HANDWHEEL: SLOW....... 100"
FAST....... 1.000"
GRINDING .................................. 14" DIA. X 2"W
X 5" HOLE
SWIVEL RANGE: UPPER........................ 180 DEGREES
LOWER...................................... 60 DEG. CW
30 DEGREES CCW
(2) GRINDING WHEEL SPINDLE SPEEDS......... 1720-2185 R.P.M.
MAX./MIN. DISTANCE WHEEL CENTERLINE
TO WORK CENTERLINE........................ 15-1/2"/1-1/2"
WORK DIAMETER REDUCTION PER REVOLUTION
OF HANDWHEEL.............................. 0.100"
AUTOMATIC INFEED @ TABLE REVERSAL,
ON DIA., HYDRAULIC INFEED MACHINE ........ 0.0002" TO .004"
AUTOMATIC PLUNGE INFEED .................... YES
RAPID (POWER) WHEELHEAD STROKE ............. 1- 1/2"
MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD............... 30-150 RPM AND
120-600 RPM
WORKHEAD TAPER............................. #10 JARNO
DIA. OF HOLE, WORKHEAD SPINDLE............. 1"
WORKHEAD SWIVEL RANGE...................... 120 DEGREES
WORKHEAD SPINDLE NOSE...................... 5A-2
TAILSTOCK TAPER............................ #6 JARNO
APPROX. WEIGHT ............................ 7,200 LBS.
EQUIPPED WITH:
SWING DOWN INTERNAL GRINDING ATTACHMENT W/SPINDLE
14" x 1.5" x 5" GRINDING WHEEL
WORKHEAD HAS A CENTER IN IT
SELF-CONTAINED "IN THE BASE" COOLANT SYSTEM
MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-AUTO TABLE TRAVERSE
-AUTO INFEED/PICK FEED AT TABLE REVERSALS
-AUTO PLUNGE INFEED
-POWER RAPID WHEELHEAD ADVANCE & RETRACTION
-SPARKOUT TIMER
DUAL LIVE/DEAD HEADSTOCK SPINDLE
14" GRINDING WHEEL
ELECTRONIC SPEED CONTROL FOR WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM FOR WHEELHEAD
5 H.P./208-220-440 VOLT GRINDING WHEELEHAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 440-480 VOLTS/3/60 ELECTRICS
** INSPECT UNDER POWER IN HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
