Top Seller
1999 14" X Axis 2HP
Location:
Harrison, NJ
Price:
$9,950 USD
Manufacturer:
Southwest Ind
Model:
Quik Cell
Spindle Taper:
#40

Specifications

Condition:
used
Year:
1999
Serial number:
994AA10042
Stock number:
152855
T-slots:
5/8" x 4 x 3-1/8"
Category 2:
Mills
Condition 2:
**** SUPERB ****
Tables size:
19-5/8" X 14"
Head (z-axis):
18"
Spindle motor:
2 HP
Spindle taper:
#40
Quill diameter:
3-15/16"
Table (x-axis):
14"
Saddle (y-axis):
14"
Spindle speed range:
250 - 5000 RPM
Approximate dimensions:
31"L x 54"W x 80"H
Max weight of workpiece:
880 LBS
Max spindle nose to table:
18"
Approximate machine weight:
2,750 LBS.
Subcategory:
Cnc machines

Description

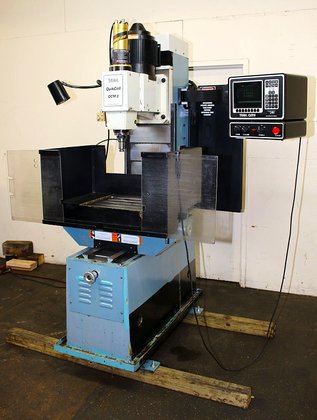

SOUTHWESTERN INDUSTRIES CNC VERTICAL MILL
MODEL: QUIK CELL, S/N: 994AA10042, NEW: 1999
SPECIFICATIONS:
TABLES SIZE ...................... 19-5/8" X 14"
T-SLOTS .......................... 5/8" x 4 x 3-1/8"
TRAVELS:
TABLE (X-AXIS) .................. 14"
SADDLE (Y-AXIS) .................. 14"
HEAD (Z-AXIS) ................... 18"
QUILL DIAMETER ................... 3-15/16"
SPINDLE TAPER .................... #40
SPINDLE SPEED RANGE .............. 250 - 5000 RPM
SPINDLE CENTER TO COLUMN FACE .... 15-3/4"
SPINDLE MOTOR .................... 2 HP
MAX WEIGHT OF WORKPIECE .......... 880 LBS
MAX SPINDLE NOSE TO TABLE ........ 18"
APPROXIMATE DIMENSIONS ........... 31"L x 54"W x 80"H
APPROXIMATE MACHINE WEIGHT ....... 2,750 LBS.
EQUIPPED WITH:
PROTO-TRAK
MODEL:
QMV
CONTROL,
486 PC BASED PROCESSOR,
CRT SCREEN, RS232 PORT,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR,
RUN CAM & MUCH MUCH MORE!
BALL SCREWS & SERVO MOTORS FOR X,Y & Z AXES
NEW
YASKAWA
AC SPINDLE DRIVE
HANDWHEELS
TORQUE-RITE
POWER DRAW BAR
HARDENED & GROUND WAYS
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM
2 HORSE POWER SPINDLE MOTOR
VIDEO:

INSPECT UNDER POWER IN OUR NEW JERSEY WARHOUSE
CONDITION: **** SUPERB ****
