Top Seller
1996 16" Width 32" Length
Location:
Harrison, NJ
Model:
KGS-84S
Weight:
.............................6,000 Lbs.

Specifications

Condition:
used
Year:
1996
Serial number:
951226703
Stock number:
150462
Of:
.......................................... .0001"
Increments of:
............................... .0001"
Spindle speed:
................................. 1,740 R.P.M.
Approximate weight:
.............................6,000 Lbs.
Cross table travel:
............................ 17.75"
Longitudinal table speed:
................... 8 to 100 F.P.M.
Table and spindle center:
.................... 21.25"/4.72"
Longitudinal table travel:
..................... 36.25"
Standard wheel dimensions:
..................... 14" diameter
Automatic down feed increment:
............. 0.0001" to .004"

Description

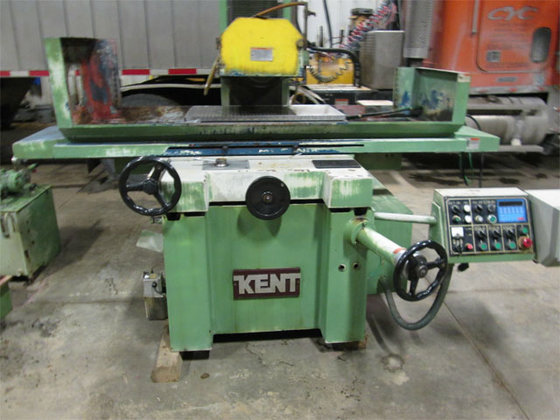

16" x 32" Kent Hydraulic Surface Grinder
w/Electronic Programmable Automatic Incremental Downfeed
Model: KGS-84SD S/N: 951226703 New: 1996
Capacity
Longitudinal table travel:..................... 36.25"
Cross table travel:............................ 17.75"
Maximum/Minimum distance betweek working
table and spindle center:.................... 21.25"/4.72"
Table Cross Feed
Longitudinal table speed:................... 8 to 100 F.P.M.
Cross feed handwheel is graduated in
increments of:............................... .0001"
Automatic cross feed per stroke of table:...... .02" to .4"
Grinding Wheel
Standard wheel dimensions:..................... 14" diameter
Spindle Speed:................................. 1,740 R.P.M.
Downfeed
Automatic down feed increment:............. 0.0001" to .004"
Downfeed handwheel is graduated in increments
of:.......................................... .0001"
Downfeed traver per revolution of handwheel:... .02"
Approximate Weight: .............................6,000 Lbs.
Equipped with:
Hydraulically actuated longitudinal feed
Electromechanically atuated cross feed
Automatic incremental downfeed of grinding wheelhead driven
by stepping motor
Programmable logic controller (PLC) of all machine functions
including:
"Rough Downfeed" increment and number of passes
"Fine Downfeed" increment and number of passes, "Sparkout"
times, "Downfeed Mode", for control of incremental
downfeed with table at right end of stroke, left end
of stroke, or both left and right end of stroke,
"Wheelhead Elevation& Position" for control of elevation
increment at completion of grinding job, "Jog" increment
to allow the operator to select three different jog rates
of the grinding wheelhead, and "reset" to set the current
position of the grinding wheel as 0 point. The PLC has a
LED Display to show the position of the grinding wheel in
relation to the starting point.
Selector switch for surface or plunge grinding modes of
operation
Selector switch for automatic incremental downfeed, downward
jogging, or power rapid elevation of grinding wheelhead
16" x 32" Electro-Magnetic chuck (very nice condition, looks virgin)
O.S. Walker “Smart Series” variable hold neutrofier control
14" Diameter x 1.5" Width x 5" Bore Grinding Wheel
External Hydraulic pump and tank
External coolant pump and tank with magnetic filtration
5 HP 3/60/230-460 volt spindle drive motor with electrical
** Excellent Condition & Appearance **
** Inspect Under Power in our Harrison, NJ Warehouse **
